Support structures: If you’ve had much experience with an FDM 3D printer at all, you’ve probably come across one or two occasions where you ought to have made use of them. An FDM 3D printer works by depositing layer over layer of thermoplastics to create a 3D object. Because of that, each new layer must be supported by the layer beneath it. If your model has an overhang that is not supported by anything below, there’s a good chance it will drop or even fall, and you’ll need additional 3D printed support structures to ensure a successful print.
Support structures are considered to be a necessary evil in 3D printing. On the one hand, they are absolutely necessary for models with nasty overhangs or bridges. On the other hand, they increase material costs, add more post-processing work, and can damage the model’s surface. Getting supports right is, therefore, a very important aspect of 3D printing complicated models.
In this article, we’ll go over everything you need to know about 3D printing support structures. Scroll down for the rundown.
In general, when your model has an overhang or a bridge that is not supported by anything below, you may need to use supports to be able to 3D print it. Here are some examples of overhangs and bridges illustrated with the help of the letters Y, H, and T.

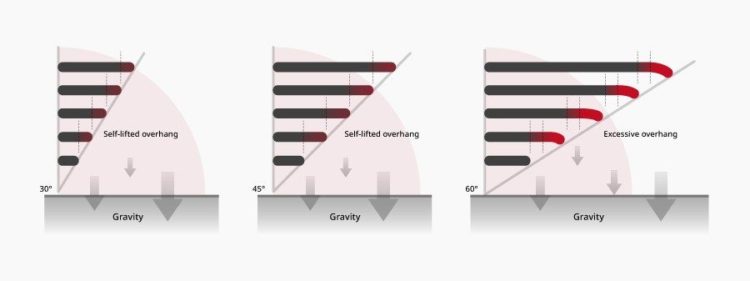

Not all overhangs need to be supported. The general rule of thumb is: if an overhang tilts at an angle less than 45 degrees from the vertical, then you may be able to print that overhang without using supports.

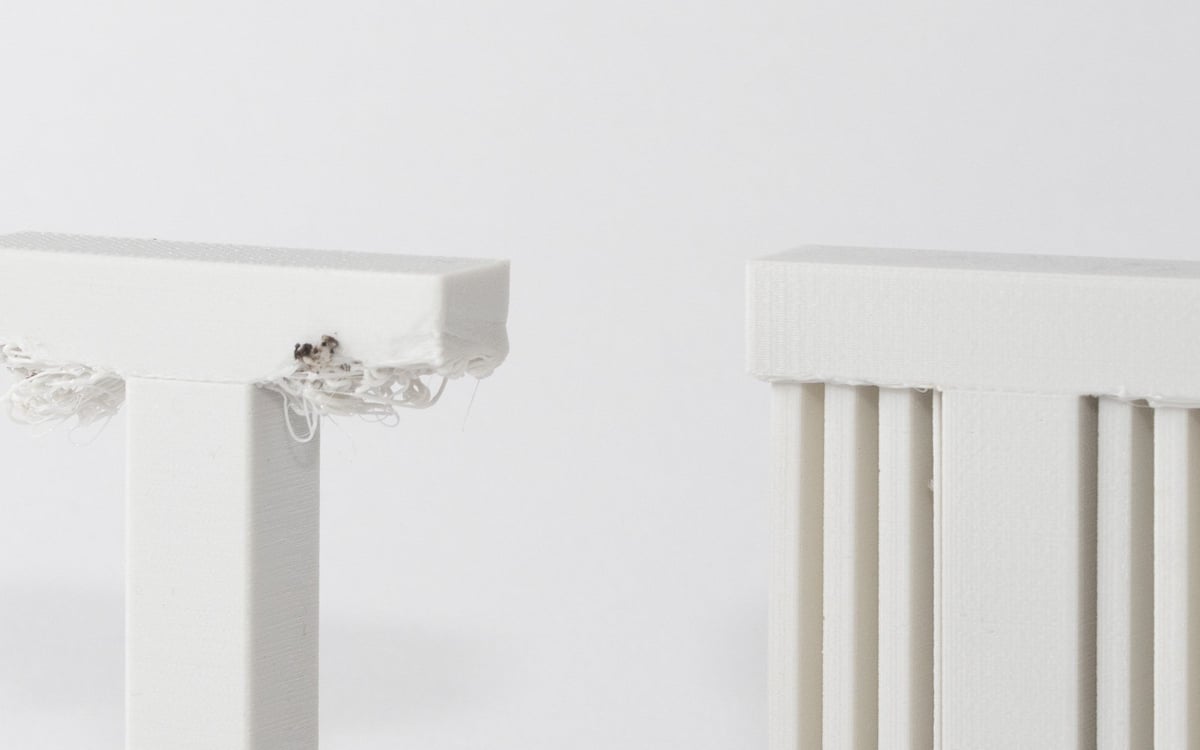

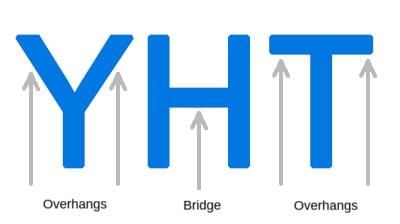

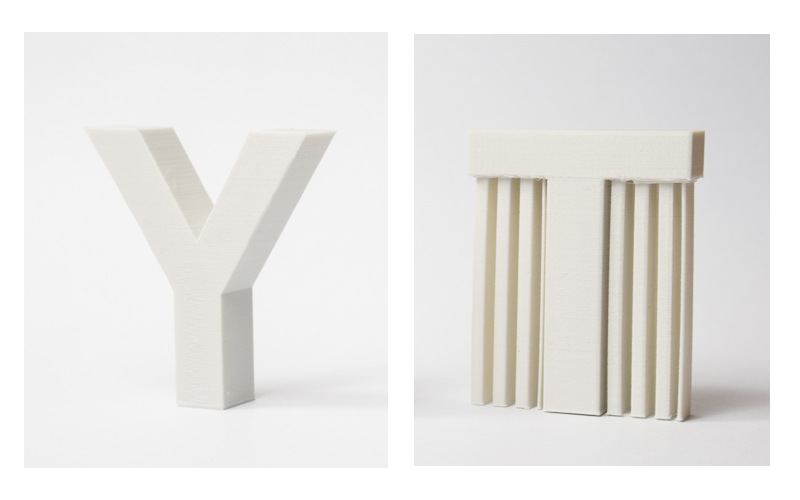

This aspect is best illustrated with the letters Y and T. The two overhangs in the letter Y have an angle below 45 degrees with respect to the vertical. Therefore, if you want to print the letter Y, you can get away without using any support.

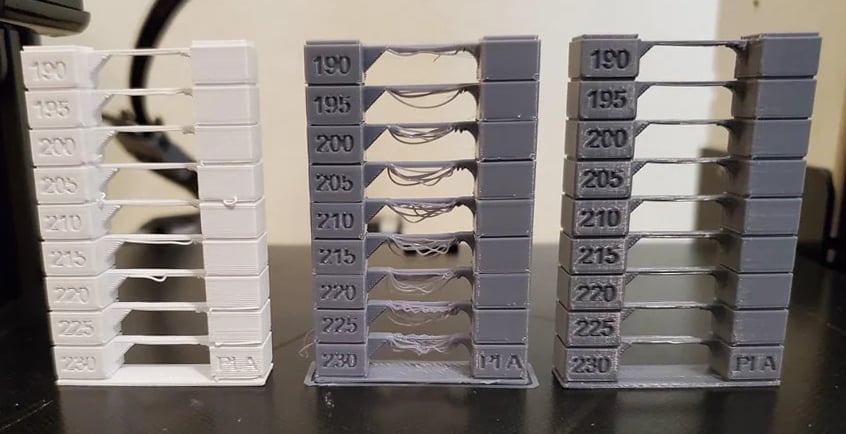

Just like overhangs, not all bridges require support. Here, the rule of thumb is: If a bridge is less than 10 mm in length, the printer may be able to print it without supports
To do this, the printer uses a technique called bridging – where it stretches the hot material for short distances and manages to print it with minimal sagging.
Once again, please only regard this distance as a general rule of thumb. Parameter adjustments, especially active cooling and print speed, can greatly improve this and produce bridges that extend far beyond the 10 mm threshold. If you want to know which settings to tweak, check out our 6 tips for perfect bridges.
Both rules of thumb regarding overhangs and bridges are just that – rules of thumb. Much depends on your printer, its condition, and the material you are using. Printers in bad condition may fail to print overhangs at an angle of 35 or 40 degrees from the vertical, while well-calibrated printers can deal with more extreme overhangs and bridges. Therefore, before you start printing models it is good practice to get an idea of your printer’s ability to print them.

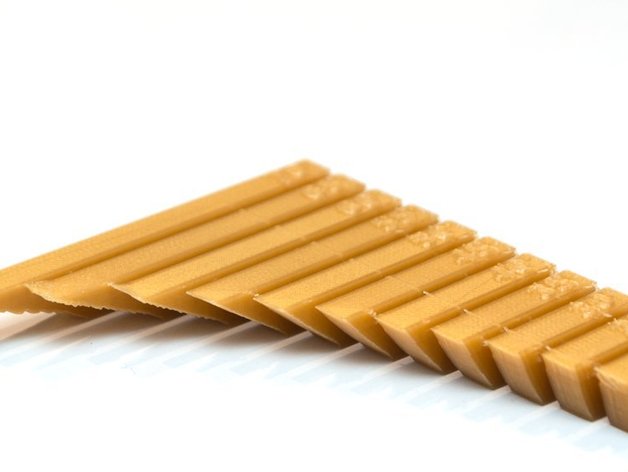

This is quite easy to do. For overhangs, just download this Massive Overhang Test model from Thingiverse and print it. This model has a series of overhangs ranging from 20 degrees to 70 degrees at 5-degree increments. To test bridging, this shell-shaped design will do the trick and show how far the envelope can be pushed. Alternatively, you can always use general print calibration models that also include bridges and overhangs.
Like many things in life, using support structures has its downsides. There are a few to go through here, so allow us to explain.
If you’re using 3D printing in a production setting, then you probably only care about the cost per part. If you’re a hobbyist on a budget, you probably care about that too.
3D printed support structures obviously add to the production cost of the model. Support structures consume material, and this material is later removed and discarded. So, every bit of support material that you use is essentially waste and adds to the cost of the print.
Especially when printing with specialized materials like carbon-fiber-reinforced filaments, costs can quickly ramp up and it might be worth looking into dual extruders that allow the machine to switch between different materials.
Another cost factor is the increased print duration that comes with support structures. While FDM 3D printers do not cost a ton of money to operate, print times can quickly add up, especially when it comes to volume production.
On the other hand, minimizing support structures may not always be the quickest solution. If you want a one-off part it might make more sense to use more supports than theoretically needed for a successful first try rather than failing and having to print the same part several times.
How much it will cost therefore depends on how many parts you want to produce, how many supports are required, at what speeds you are printing them, and, how easily they can be removed.
Support structures are not part of the model. They are used to support overhanging geometries during printing. This means that once printing is over, you have the additional task of removing the structures before the model is ready to go.
In a production setting, added work means added cost to the model. This can get even worse when support structures are in those hard-to-reach places, do not easily separate from the actual part, or removing them causes parts of the model to break.
To minimize post-processing, you might want to consider switching to soluble supports . Alternatively, you might be able to get rid of it entirely by integrating supports into the design or reorienting the model.

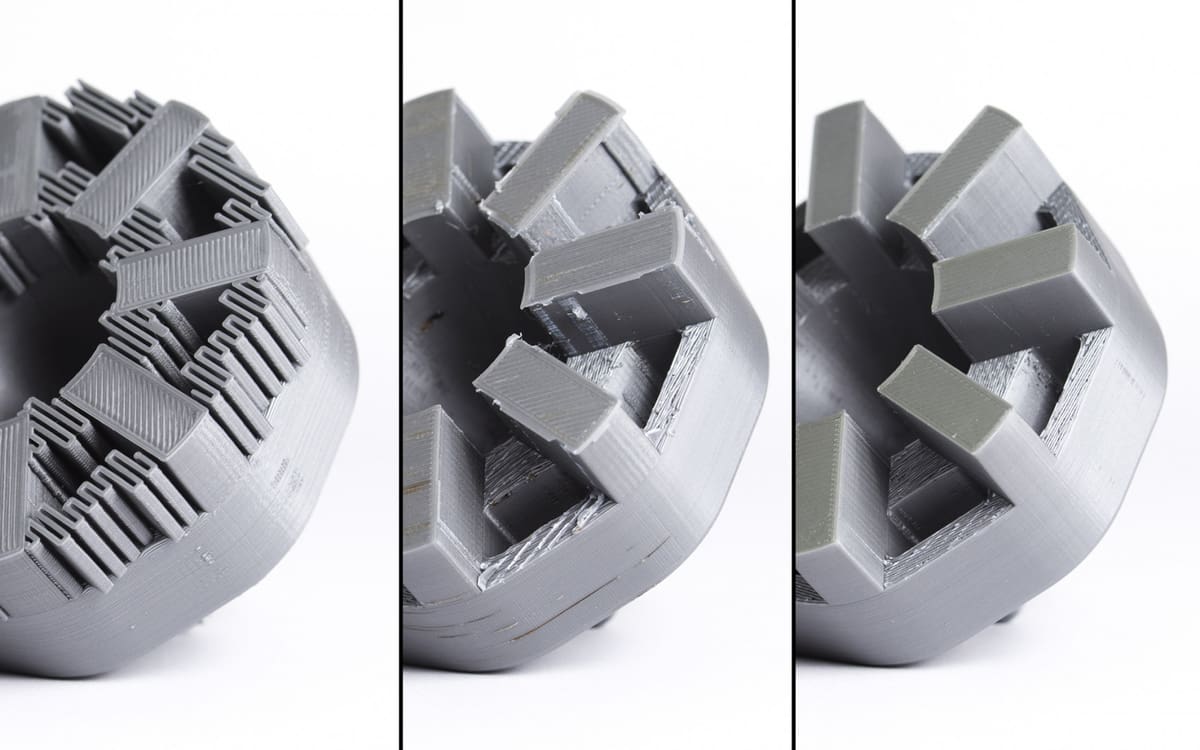

Support structures touch and often stick to the downward-facing faces of the models. This is the only way to provide support to overhangs and bridges. If you are not careful when removing them, they might leave blemishes on the model surface. In the worst case, part of the model may break off along with the support structure.
All in all, there are significant downsides to using support structures. Therefore, here’s another rule of thumb: minimize the use of support structures and add them only where necessary. In later sections, we will show you how to apply this philosophy right from the CAD design phase leading all the way up to the printing phase.

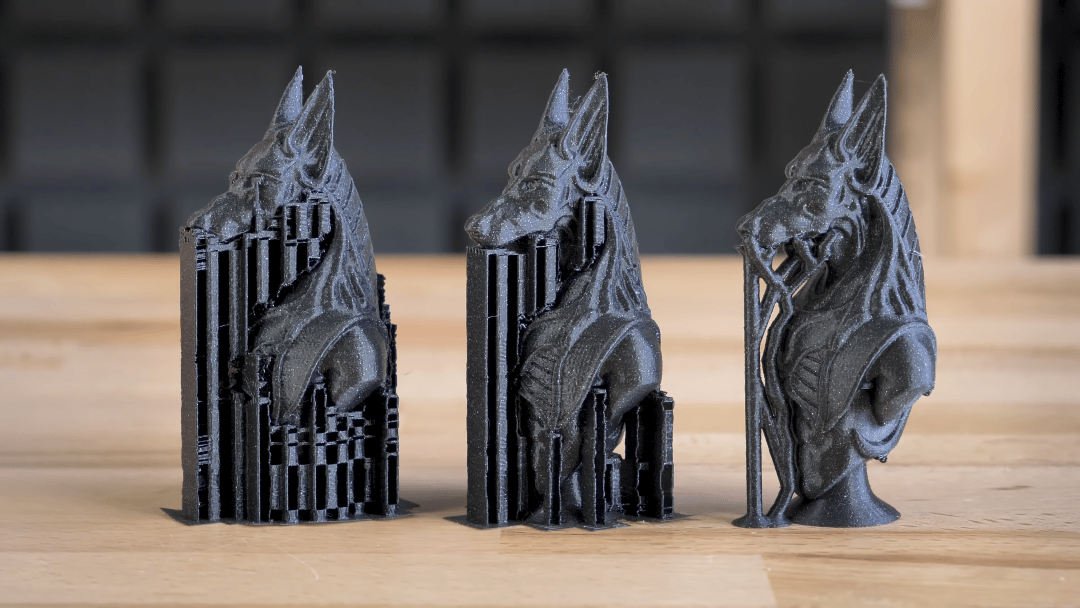

There are two common types of supports: lattice and tree-like support

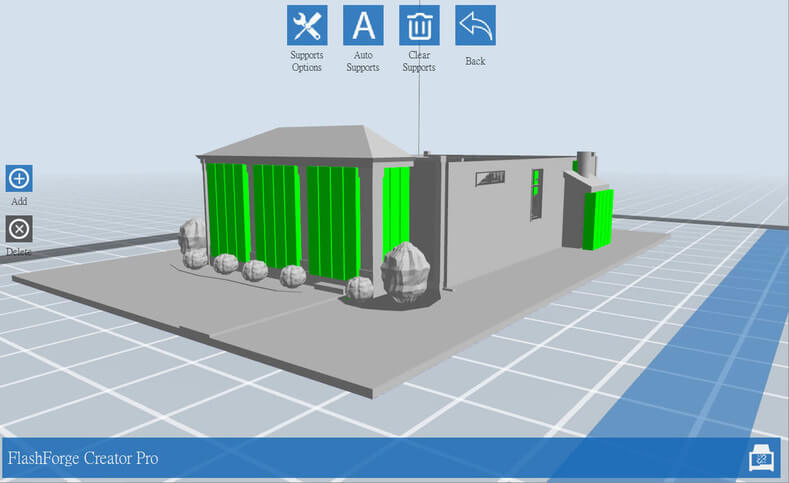

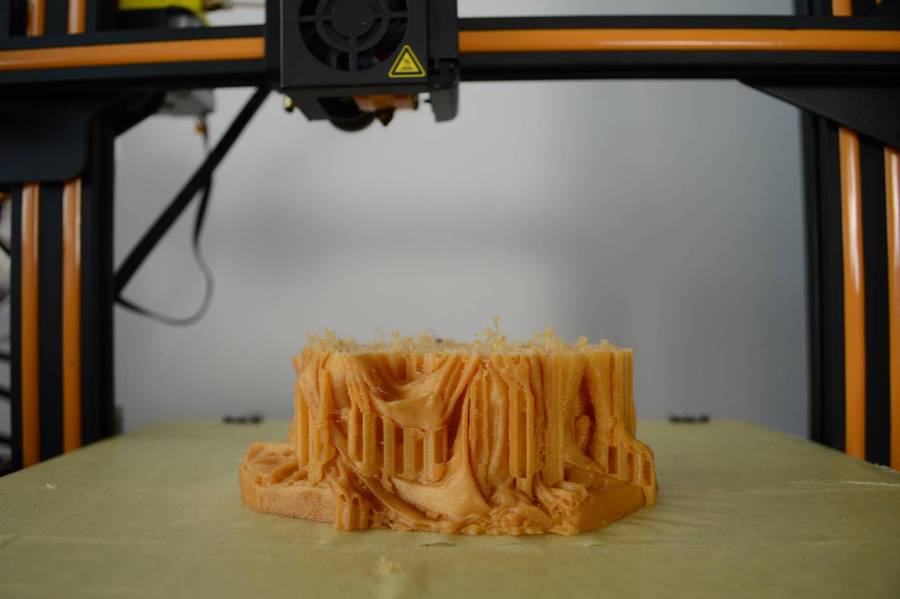

Also known as linear, this is the most common type of support used in 3D printing. It consists of vertical pillars that touch the entirety of the overhang. This type of 3D printing support works for just about every overhang and bridge. However, they are much harder to remove and much more likely to cause damage to the model surface.

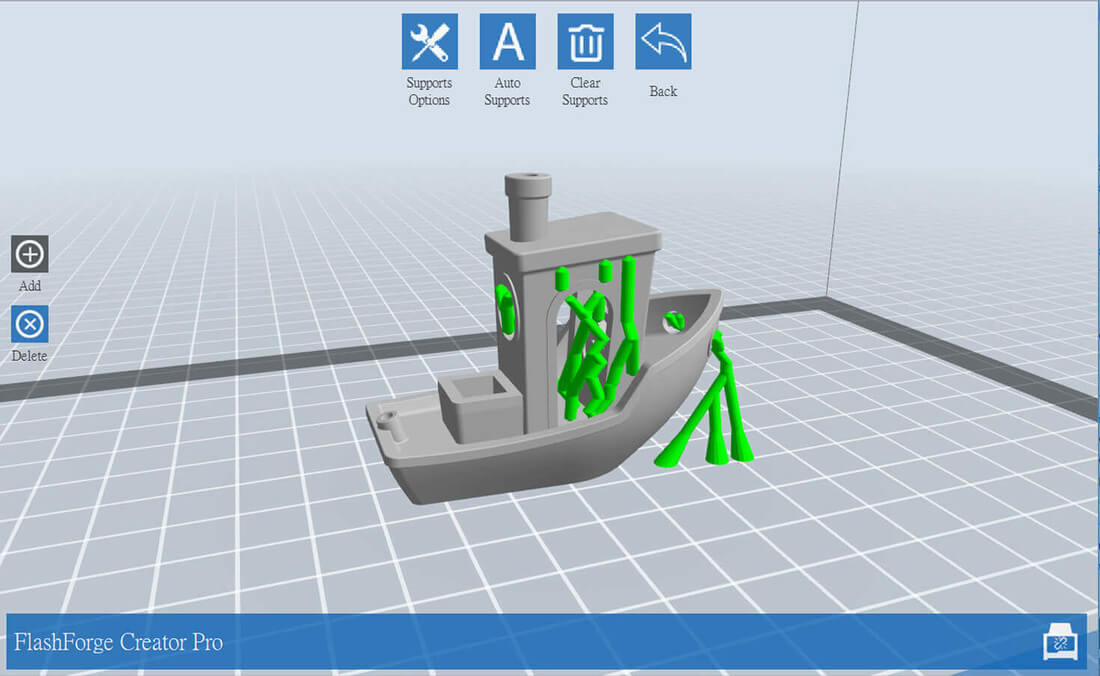

Tree-like support is a tree-like structure that supports the overhangs of the model. This type of 3D printing support only touches the overhang at certain points.
Printers with one extruder use break-away supports structures by default.
When you have one extruder, you have to use the same material that’s being used to print the model for printing the support structures. You can naturally adjust the density of the support structures and make it much lower than the model density, but that’s the only control you have as far as support material is concerned.

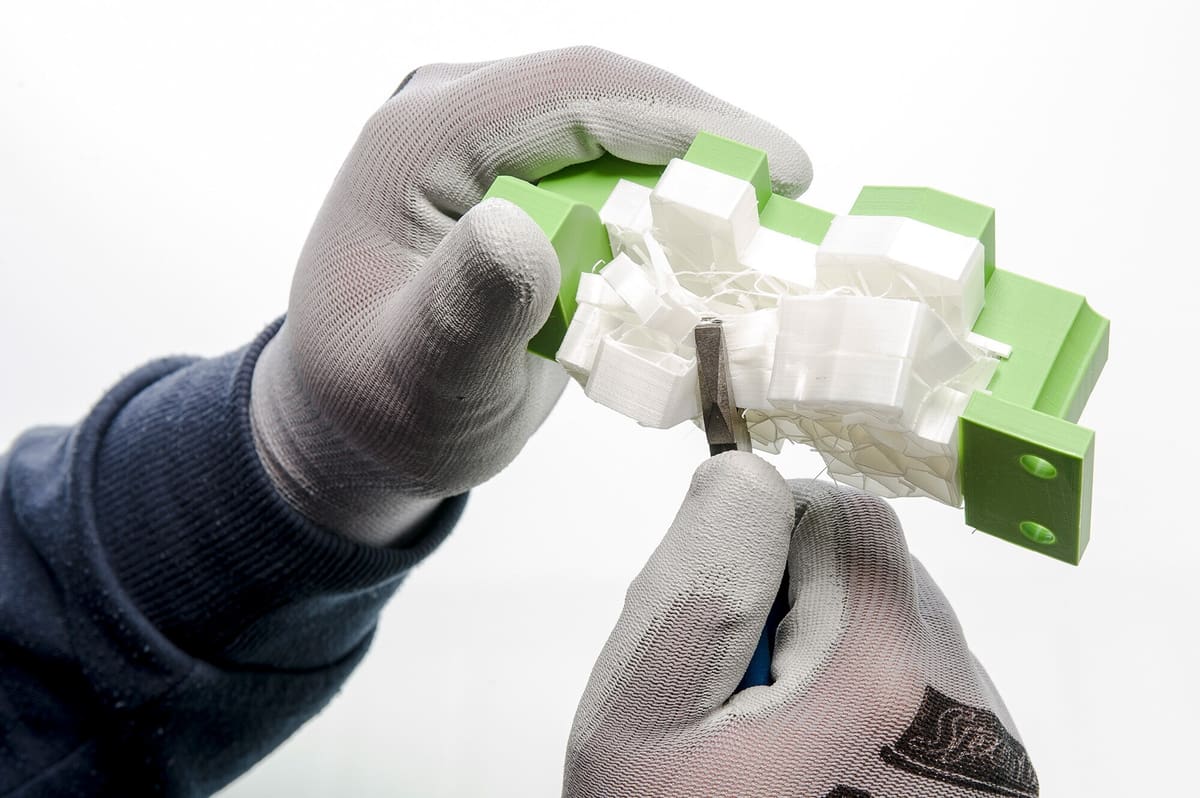

Since the model and the supports are made of the same material, the only way to separate them is by either breaking off the support structure by hand or by carefully cutting it off with a knife.
These methods of removal introduce quite a lot of risk of damaging the model, and one has to apply proper technique and remain extremely vigilant and careful during the removal phase.

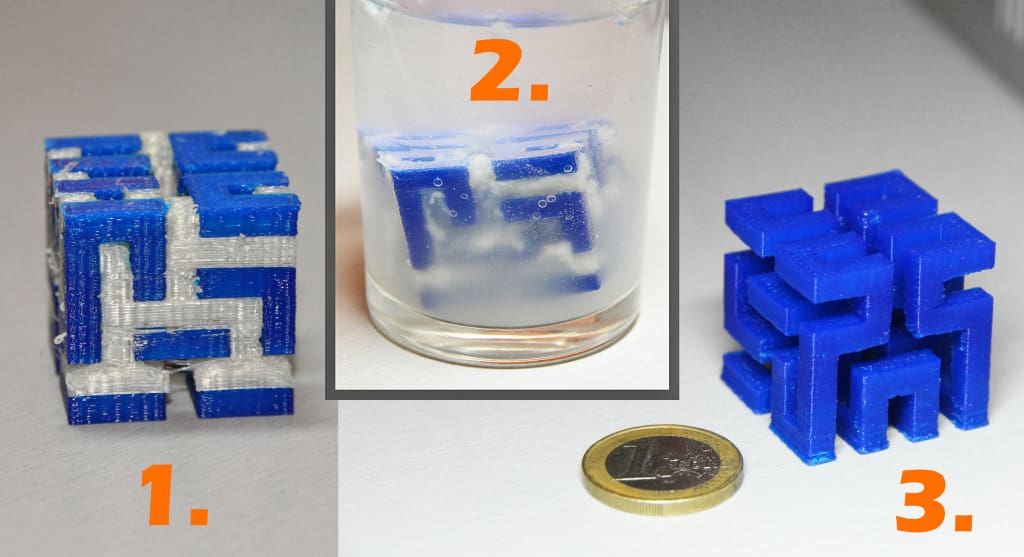

If you have a printer with two extruders, there is a better option. You can load one extruder with PLA for printing the model and the other one with a water-soluble material like PVA or Limonene soluble material like HIPS for printing the support structures. Once printing is over, simply wash them away by immersing the model in water or Limonene.
This method of removal reduces the risk of model damage and makes the post-processing work easier, making it ideal for complex prints.

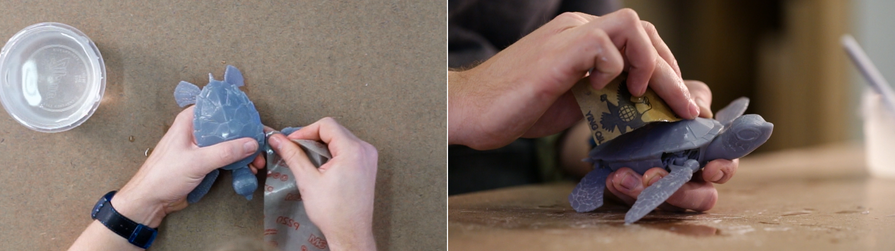

Since breakaway support structures are hard to remove and can potentially damage the model, we’ve included some tried and tested tricks to remove them in the right way.
If you are interested in the community’s take on this topic, take a look at this thread- Best Way To Remove Rafts, Supports, and other Extraneous Filament.
One trick to avoid support structures is to add elements to the model that can perform the same job. This trick has been used by sculptors for centuries. For example, take a look at this “Venus Vitrix” sculpture by Antonio Canova.

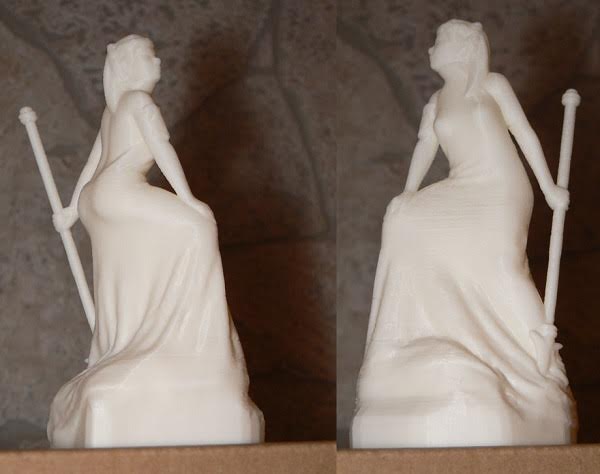

The next example is a model called “The Guardian” by designer Fantasygraph. He cleverly supports the legs and the buttocks of the model with a flowing gown. The spear fixed to the bottom acts as a support for the left arm.

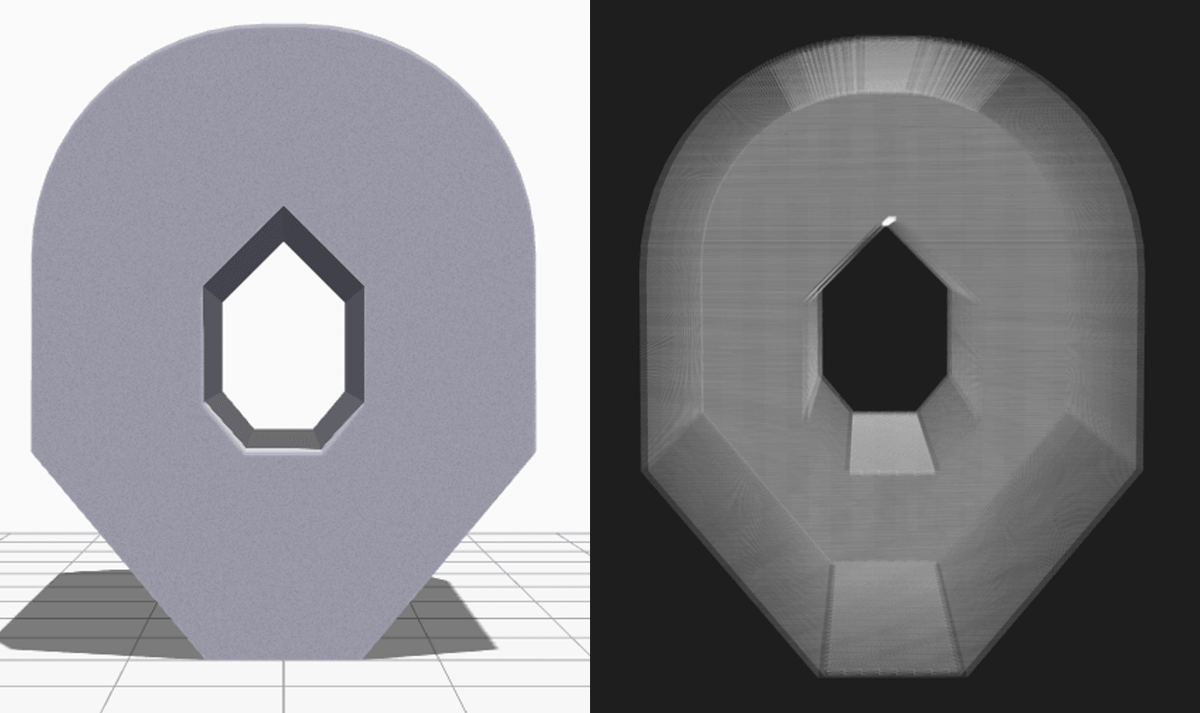

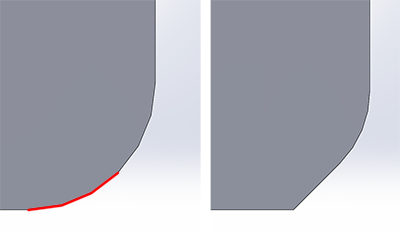

Another way to eliminate supports is chamfers. Chamfers are a neat way of turning otherwise nasty overhangs into innocuous overhangs with angles less than 45 degrees.
For example, if you have a gently sloping or curved edge, you can replace it with an angular edge that requires no support. Such an angular design is called a chamfer.

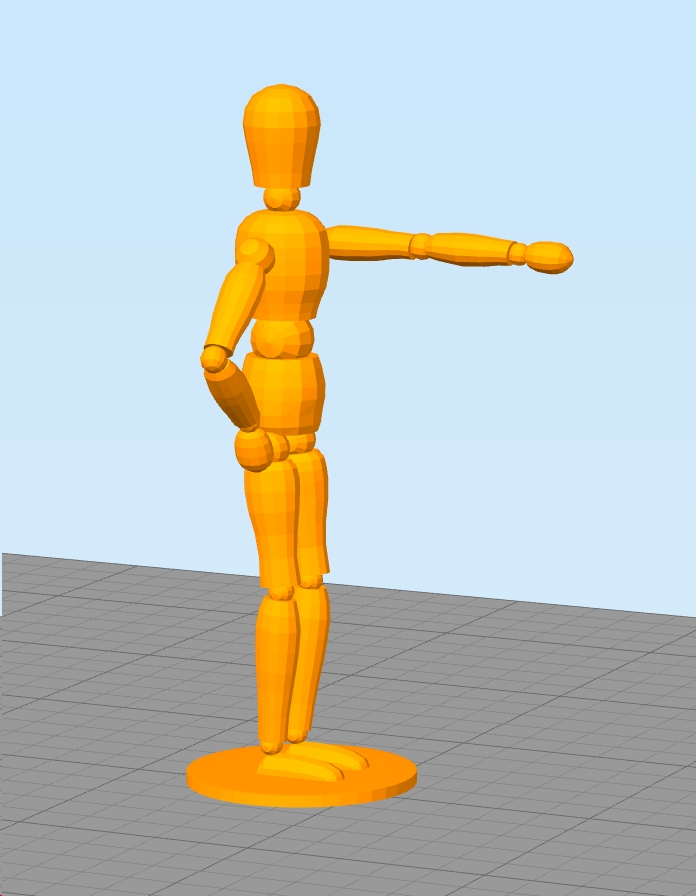

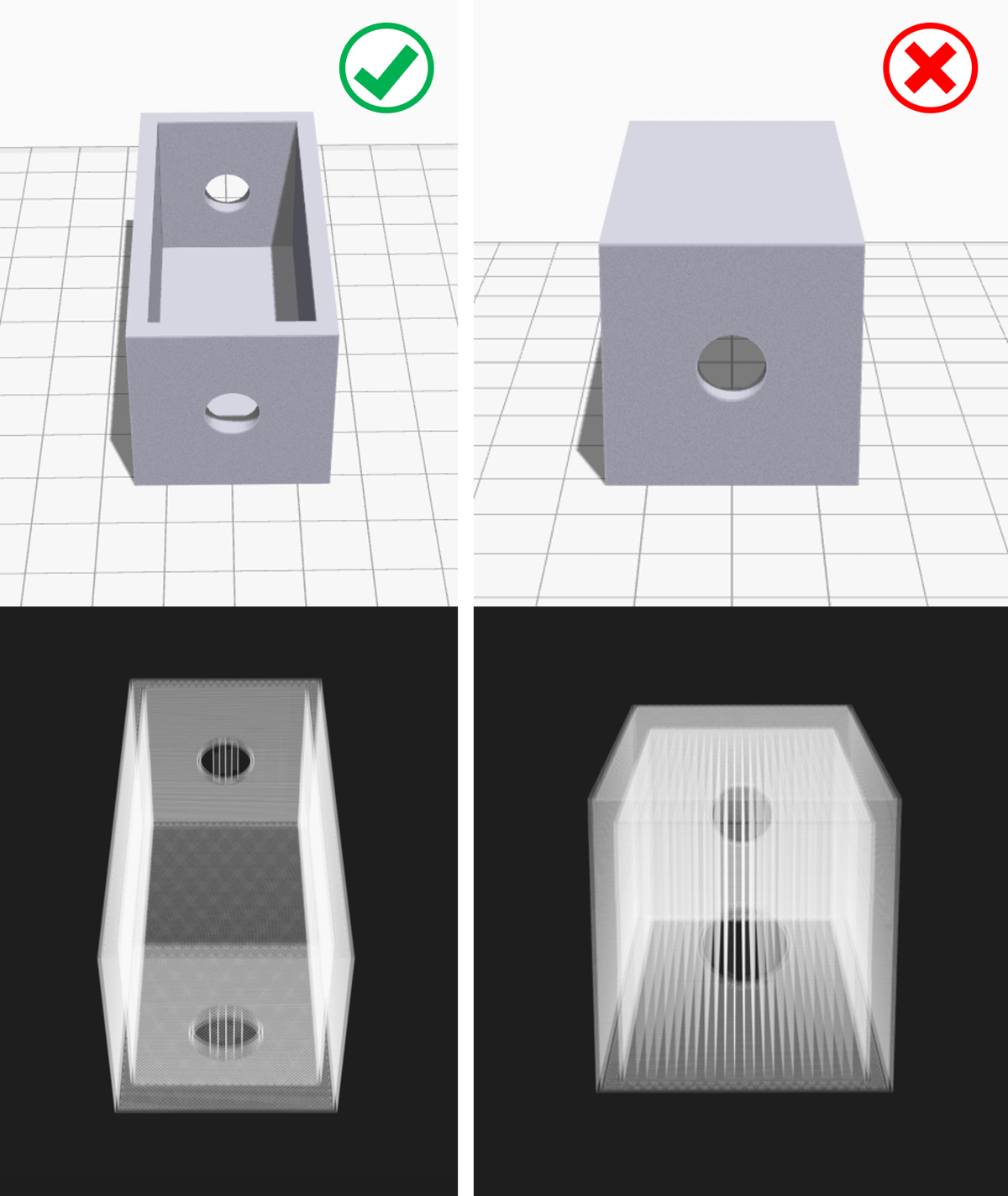

Sometimes, minimizing the necessary support structures is as easy as reorienting the model on the print bed. For example, it is much better to print the open box shown below with the open face on the top.

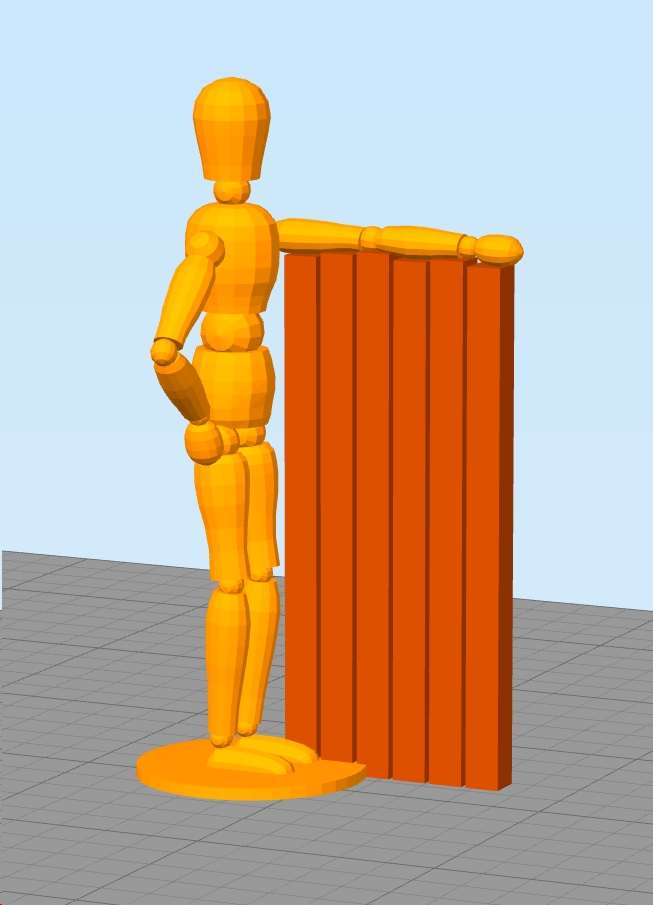

If you print the model as it is, we will need to support the left arm. It is basically a long overhang with an angle of 90 degrees.

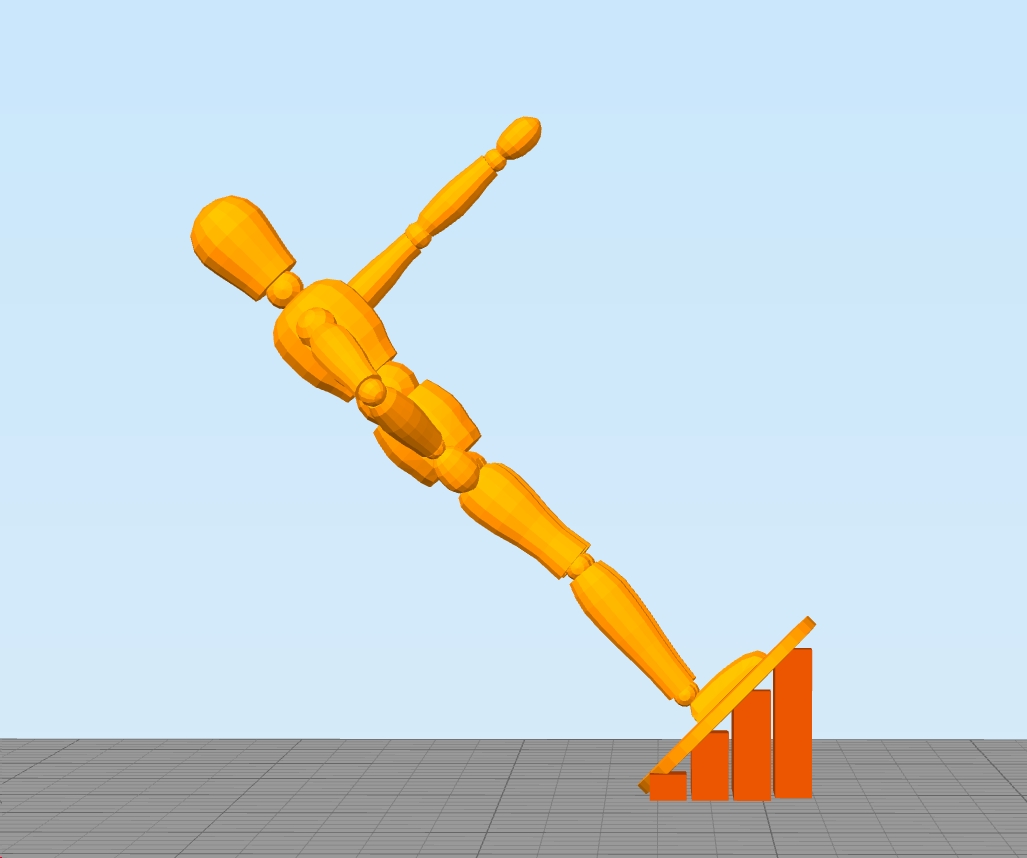

When you remove the supports, it will most likely leave blemishes on the underside of the arm. To avoid that, you can rotate the whole model by 45 degrees and just add support for the base of the model. The quality of the base of the model does not matter much anyway. This way, you can print the model with fewer support structures and save the left arm from damage.
This model is of course only a demonstration. More experienced makers among you will see the little “islands” at the knee, buttocks, and head where the print head would extrude into nothing and therefore result in a pretty ugly print. Of course, these islands would also need to be supported in order to avoid this.
In the previous sections, we stressed that you should try to minimize the use of support structures whenever possible. However, this implies that you will often be treading on tricky territory where there’s the risk of model instability. To minimize this risk, here are some general tricks.
Sometimes, it is impossible to avoid support structures. But even in this case, you should try your best to ensure that they are stable, easily removable, don’t waste a lot of material, and do not damage the surface of the model.
Your slicer software will give you a lot of additional ways to tweak support parameters. Most slicer software can generate them automatically, but they also provide a manual mode where you can add or remove supports wherever you want. Also, slicer software offers a lot of different settings that control the following aspects:
In this article, we chose to focus on Cura, because it is one of the most popular free slicers out there.
Cura offers a host of support structure-related settings under the “Support” section of the “Custom Settings”. If you can manipulate these settings properly, it is possible to create supports that meet most of the essential requirements.
First things first. How do you cross-check if your model needs additional support?
Cura makes this easy. Once you have imported your model into Cura and positioned it on the virtual build plate, look out for sections colored in red. Those are the parts where Cura has detected overhangs.
If you see red on the bottom of the part where the model touches the build plate, you don’t have to worry about this area being unsupported. The build plate will take care of this problem. Small red areas at the tops of holes or between two structures are called bridges, and Cura will handle them automatically too.
If there are other parts highlighted in red, then you need to start worrying. To begin with, you need to enable the auto-generated support structures to ensure that those red parts can be printed successfully. To do this, simply check the “Generate Support” checkbox under the “Support” section.
So, you have now enabled the auto-generated support structure, but probably didn’t see anything change in the model view. That’s because Cura does not show support structures in the default “Solid” view. To see the supports that were generated, change to “Layer” view. Support material (lines and volume) will be displayed in teal. Move the layer slider up and down to see where the support is added to the model.

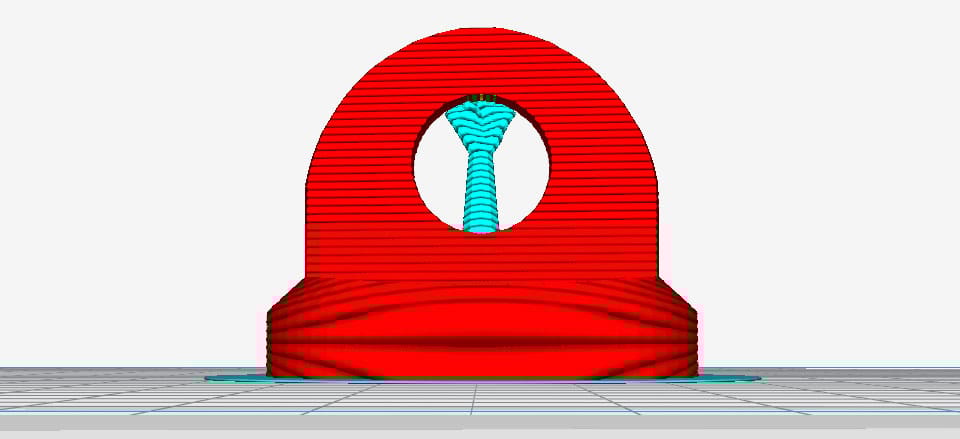

Cura generates lattice support structures by default. In version 3.2 beta, Cura introduced the possibility of using tree-like supports instead of the default lattice ones.

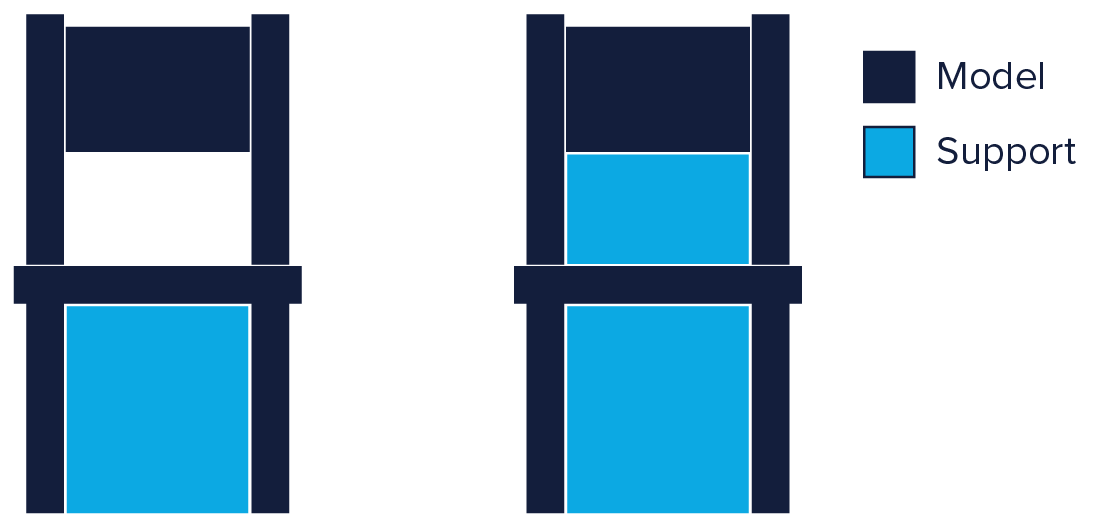

When you enable support structure, a setting called “Placement” automatically appears under the “Support” section. The “Placement” setting lets you coarsely control the positioning of the support structure. There are two options: “Everywhere” and “Touching Build Plate”. “Everywhere” is selected by default.
When “Everywhere” is selected, Cura 3D attempts to build structures wherever they are necessary. This means you not only have support structures that are erected on the build plate but also those that use part of the model as its base. This is a reasonable option in most cases as this ensures that all unstable areas will have the necessary support.
However, if “Everywhere” is selected for very complicated models, the model might end up being completely encased by support material. If you don’t want this, simply change the placement setting to “Touching Build Plate”. This will create supports underneath overhanging sections of the model, only between the build plate and the model.
Since a model’s overhang is printed on top of support structures, you don’t always get the best surface finish for these parts. The “Enable Support Roof” setting can help with that.
A support roof is a dense skin at the top of the support structure which does not compromise the surface finish of the overhangs too much. When you enable this setting in Cura 3D using the checkbox, you will get a better finish quality. But this improvement comes at a cost as this option makes the support structures harder to remove than usual. Use this option only if the surface finish of the overhanging part is critical to the function of the finished part.
Sometimes, the supports are built too close to the model’s outer wall and leave marks on its outer surface. You can prevent this from happening by using the Support X/Y Distance hidden setting under the Support section.
The Support X/Y Distance setting in Cura essentially controls the minimum allowed distance between the model’s vertical walls and a support structure in the X/Y plane. If your support structures are damaging the walls or sticking to them, you can increase the value by increments of 0.2mm until the walls come out smooth. However, please ensure that there are no small overhangs sticking out of the outer walls that will go unsupported if you put a little bit of distance between the support and the walls.
For the support material to break away cleanly without pulling the model layers apart, the connection between the support material needs to be made weaker than the connection between the layers of the model. Cura creates this weaker connection by leaving a space between the top and bottom of the support structure and the model – this space is known as Z-distance.

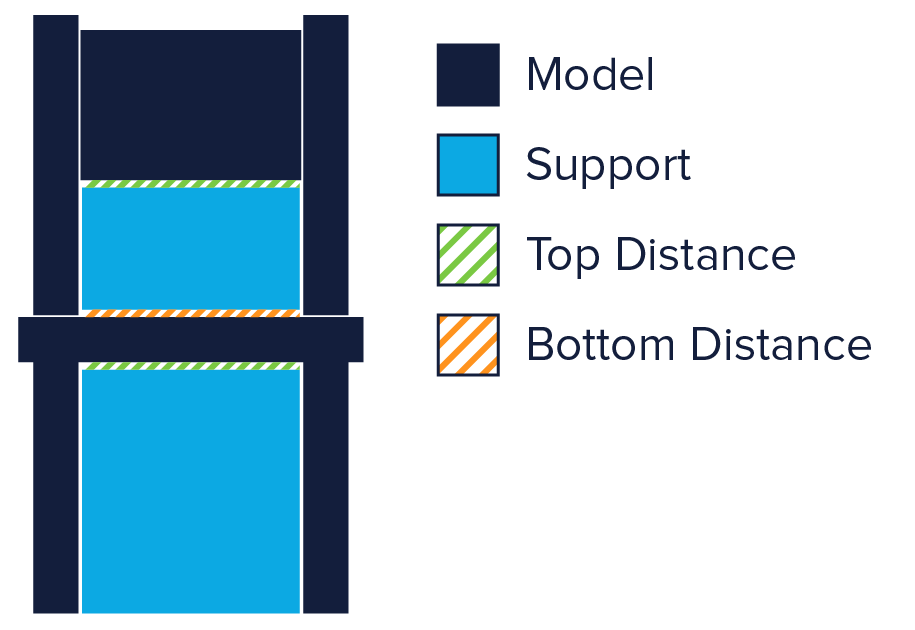

You can make the support structures easier to detach by controlling the hidden Z-distance settings under the “Support” section. The default value for this setting is the same as layer height. So if your layer height is 0.1 mm, the default Z-distance will be 0.1 mm too.
If your support material is difficult to break away from your model, increase this value in increments of your layer height until it comes away cleanly. Cura can either add support on any given layer or not add support. Unfortunately, there are no “half layers of support.” So if a 0.2 mm Z-distance setting for a print with a layer height of 0.1 mm is too much, and the Z-distance of 0.1 mm is not enough, you’re out of Z-distance options.

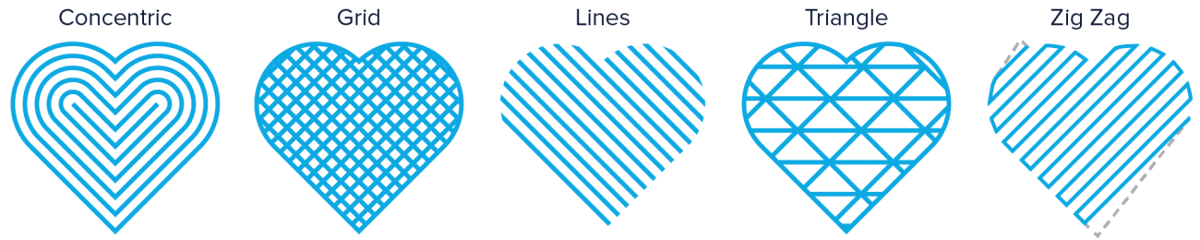

Cura generates 3D printing support material in one of seven patterns. You can change the pattern by using a hidden setting called Support Pattern under the Setting section.
In most cases, the default pattern, “Zig Zag”, will generate the best balance between strength and ease of removal. The other pattern options are “Triangles”, “Lines”, “Grid”, “Concentric”, “Concentric 3D”, “Cross”, and of course, tree support. If you are unhappy with the default pattern, you can experiment with the other options. Each of them will give you a different balance between strength and ease of removal. Community feedback has been mixed on which strategy works best since it’s dependent on part geometry and individual requirements.
