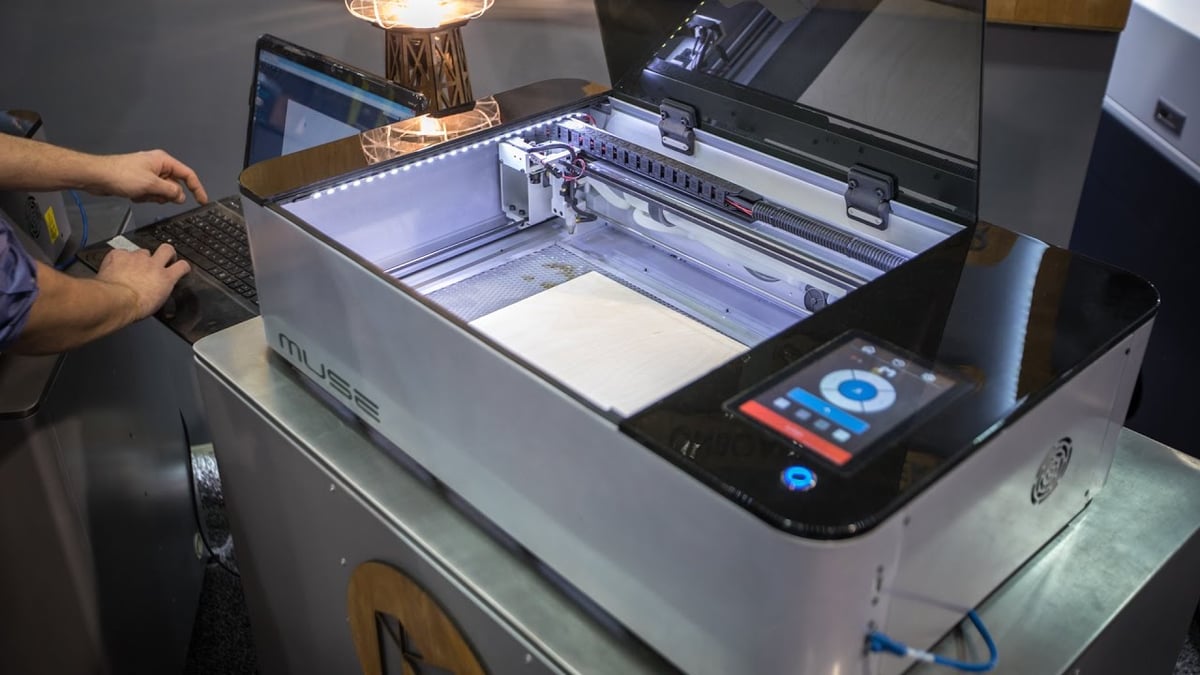

The company Full Spectrum Laser (FSL) produces several types of fabrication equipment including 3D printers and laser engravers, all ranging from the hobby to professional level. And the FSL Muse is another contender in the hobby laser market, a machine packing a 40W laser and a water-cooled CO2 laser, with an external cooling unit included.
This happens to be Full Spectrum Laser’s most entry-level product at $5000, packing just enough to satisfy a hobby user. Let’s break it down in this spec breakdown.
Features
Class 3 40W Laser
The 40W laser with a resolution of 1000 dpi is standard for hobby-grade machines like this one – it’s claimed by the manufacturer to be capable of cutting and engraving quarter-inch wood or acrylic, and leather, among others. And if you’ve got a more advanced use case, you can even engrave steel or glass with this laser. All in all, it’s a pretty standard package at this price point – nothing new here.
7″ Touchscreen, Web-based Control Software, Conveniences
Touch controls are a reasonable expectation for $5000, and the Muse has got it. In addition, you can rest assured that you won’t have to get anywhere near an active laser as it’s getting fired up because this machine is controlled via a web-based software called RetinaEngrave. There’s not much need for guesswork, either, with the onboard camera tucked away in the ‘sturdy metal case design’ of the Muse.
External Water Cooling, Safety Measures
Included in the standard package is a water cooling unit for cooling the CO2 laser directly via a series of tubes. It’s a standard feature among these machines, but it’s something to keep in mind when planning to place this machine in a studio or home office. After all, you’ll also need to make space for an external water pump unit near the machine. Speaking of placement, you’ll also want to place the Muse near a large, open window to dissipate fumes if you go for the baseline configuration without the upgraded exhaust system.
Tech Specs
Weight and Dimensions
Engraving Area: 20” x 12” (508mm x 305mm)
Machine Dimensions: 37″ x 27.5″ x 35.375″ (939.8mm x 698mm x 898.525mm)
Weight: 54 lbs (24.5 kg)
Z Height: 2.5″
Laser
Laser Classification: Class 3
Laser Type: Sealed CO2 Laser Tube
Laser Power: 40W
Focus Lens: 2″
Integrated Red Guiding Laser and Beam Combiner
Resolution: Up to 1000 dpi
Power
Power Supply: AC 110V native (220V option available)
Gross Power: <1000W
System
Operation Modes: Precision raster, vector or combined modes
Motion Control: High-Speed Stepper Motors
Operating Temperature: 0C – 45C
Control Software
Software: RetinaEngrave v3.0
Compatibility: PC, Mac & Linux
Browser Compatibility: Google Chrome (recommended), Safari, Firefox, Edge, & Internet Explorer
Min Screen Resolution: 1024 x 768 Pixels
Ability to Connect Through Network (Ethernet or Wireless) without Internet Connection
Wireless Connection Frequency: 2.4 GHz
Material Capabilities
¼” Wood (Cut/Engrave)
¼” Acrylic (Cut/Engrave)
Fabric (Cut/Engrave)
Cardboard (Cut/Engrave)
Paper (Cut/Engrave)
Natural Leather (Cut/Engrave)
Stone (Engrave only)
Glass (Engrave only)
Rubber (Cut/Engrave)
Machine Features
7″ LCD Touchscreen
Onboard Camera
Linear Rail Motion System
Sturdy Metal Case Design
Removable Floor
Various Focus Lens Options
Riser & Rotary Options
Included Equipment
40W or 45W Laser Tube Options
2″ Focus Lens
Exhaust Fan
Water Cooling
Air Compressor
Optional Accessories
Upgrade Cooling System: Refrigerated Water Chiller
Upgrade Exhaust System: Large Exhaust Fan; Fume Extractor/Air Purifier Options
Specialized Focus Lenses: 1.5”; 2.5”; 5.0”
Rotaries: Friction Rotary
Riser
Where to Buy
You can buy the FSL muse right here:
