While the consumer 3D printing market is being conquered by the manufacturers that offer the lowest price, professionals and educators require certain features that meet their specific needs. Designers and engineers want a professional machine that is both reliable and fast. Teachers in the classroom setting need a 3D printer that ensures safety and is easy for students to use.

US-based manufacturer Fusion3 is striving for a more prominent place on the professional market, and its latest large-format 3D printer might just hit the mark for the workshop and classroom settings. At $4,599, the Fusion3 F410 3D printer is an affordable option for prototyping and educational uses.

It has a considerably large build volume that is fully enclosed, a high maximum print speed, and many other features. As the manufacturer puts it, the Fusion3 F410 3D printer is ideal for those looking for a “combination of precision, speed, and reliability”. It also made it onto All3DP’s “Best Large 3D Printer” list, so it’s definitely got our attention as well.

Sounds like a 3D printer worth taking a closer look at, don’t you think? Let’s review the facts of the Fusion3 F410.

Fusion3 F410
Commissions Earned Check price at
Fusion3 F410 3D Printer: Review the Specs

Features

Image of Fusion3 F410 3D Printer: Review the Specs: Features

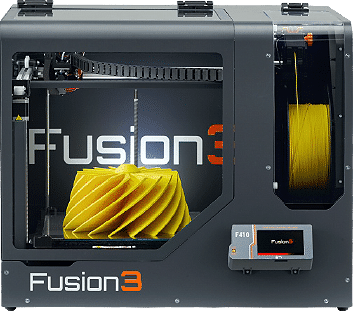

The Fusion3 F410 boasts some impressive features, the most noticeable of which is its ample 355x355x315mm enclosed build volume.

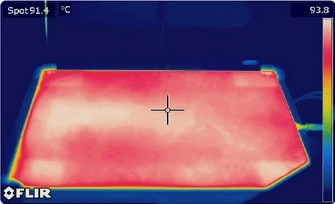

This aluminum enclosure provides a stable heated environment when printing with high temperature materials. It also has a multi-zone heated bed that maintains a stable 45°C across the entire print platform. So, if you need to print with engineering-grade materials like Polycarbonate, ABS and Nylon, the Fusion3 F410 is able to handle nearly any 3D printable material, no matter how advanced.

The Fusion3 F410’s multi-zone heat bed

For the classroom, the print bed enclosure also protects users from the heated nozzle or print bed. The Fusion3 F410 also has optional Carbon and HEPA air filters, reducing odors and harmful emissions. It’s also extremely quiet, keeping distractions to a minimum.

There’s some other features that will definitely appeal to engineers and designers, such as the maximum print speed of 250 mm/s. This enables speedy prototyping and more efficient production workflows. If print quality is the priority, the Fusion3 F410 also has a minimum layer resolution of 20 microns and print tolerances within 0.003 inches.

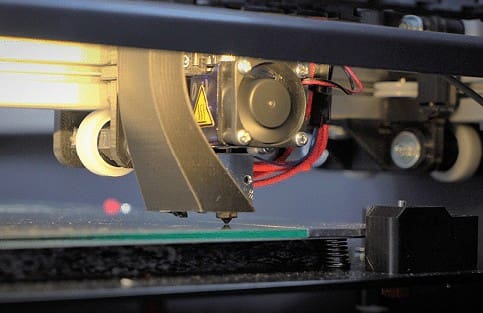

Fusion3 has completely redesigned the printer’s extruder to include filament monitoring—which pauses the print job if you’re running out of filament or extrusion stops—and a filament cleaning mechanism. The manufacturer has integrated an E3D Volcano hotend and interchangeable hardened steel nozzles (4, .6, .8mm).

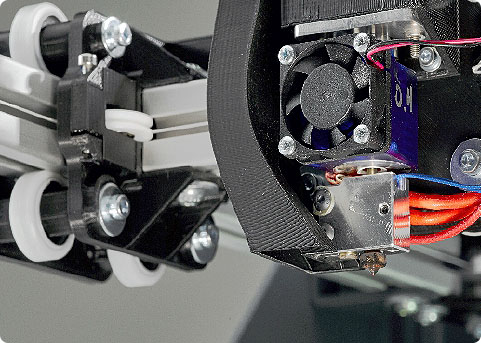

Instead of the traditional rubber belts, the Fusion3 F410 utilizes a Kevlar cable system that promotes higher accuracy and greater print speed. Both the frame and enclosure is made of structurally rigid aluminum, providing stability and low vibrations.

Users can control and monitor the printing process from a web browser and ethernet connection. There’s also a 4.7″ full-color touchscreen that is packed with advanced controls and settings.

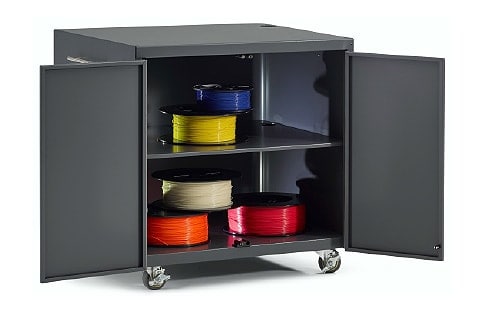

If you don’t have space on your desktop, there’s also an optional rolling cart that doubles as a storage space.

Last but not least, another great perk that comes with the Fusion3 F410 is a free copy of Simplify3D, one of the most popular slicing software options that cost $149. The manufacturer also takes pride in the fact that the printer is fully designed, assembled and calibrated in the United States.

Back to Contents

Advertisement
Advertisement
Fusion3 F410 3D Printer: Review the Specs

Specs

Image of Fusion3 F410 3D Printer: Review the Specs: Specs

Want the cold hard facts? Here are the specs of the Fusion3 F410 3D printer:

  • Print Technology: FFF
  • Build Volume: 355x355x315mm
  • Machine Size: 724 x 775 x 648mm
  • Filament Diameter: 1.75mm
  • Min. Layer Resolution: 20 microns
  • Max. Print Speed: 250 mm/s
  • Build Plate: Heated glass with multizone heater
  • Max Build Plate Temperature: 140°C
  • Build Plate Material: Glass
  • Build-Plate Leveling: Automatic Bed Leveling
  • Materials: PLA, ABS, HIPS, TPU, PC, Nylon, TPE, FLEX, PETG, Metallic PLA, Wood PLA, Carbon Fiber, etc
  • Print Head: E3D Volcano
  • Extruder: Bowden
  • Nozzle Diameter: 0.4, 0.6, 0.8mm
  • Max Nozzle Temperature: 300°C
  • Connectivity: SD Card
  • Operating Systems: Windows, Mac, Linux
  • File Types: .STL, .OBJ

Back to Contents

Advertisement
Advertisement
Fusion3 F410 3D Printer: Review the Specs

Where to Buy

If you need a large-format 3D printer that is built for speedy prototyping or classroom safe, the Fusion3 F410 is worth a hard look. Considering the features that this 3D printer offers, the low price tag makes it seem like a bargain for prosumers, small business and educational purposes.

You can request a quote for the Fusion3 410 below:

Fusion3 F410
Commissions Earned Check price at
