The Chinese manufacturer Qidi Technology has been making a name for itself since it was founded in 2012. With popular machines like the Qidi Tech X-Max breaking through the crowded FDM 3D printer market, it’s honing in on the hobbyist and semi-professional sector.

Qidi Technology’s mission statement is to balance affordability and versatility by implementing useful features that most 3D printers, in that price category don’t include.

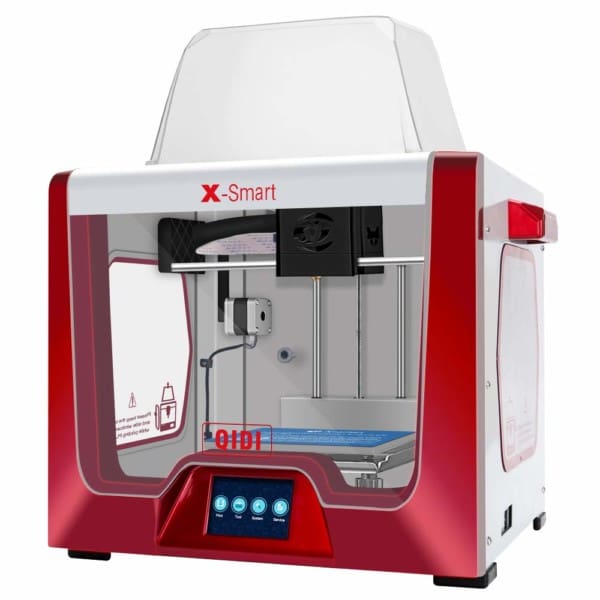

The updated Qidi Tech X-Smart is an all-metal frame compact 3D printer that offers an array of features aimed towards making the 3D printing process both safe and easy.

Does Qidi succeed? Read on for our review of its specs.

Qidi Tech X-Smart
Commissions Earned Check price at
Qidi Tech X-Smart: Review the Specs

Features

Here are some of the features the Qidi Tech X-Smart offers.

Ready out of the Box

The machine is constructed to be compact and comes pre-assembled; all you have to do is to feed the filament and level the printing bed, follow the simple instructions, level the bed with a sheet of paper, and start your first test print within an hour of unpacking the printer. Qidi Tech provides some test prints on the included USB stick, so even as a complete beginner, you can have it up and running in no time.

Suitable for Beginners

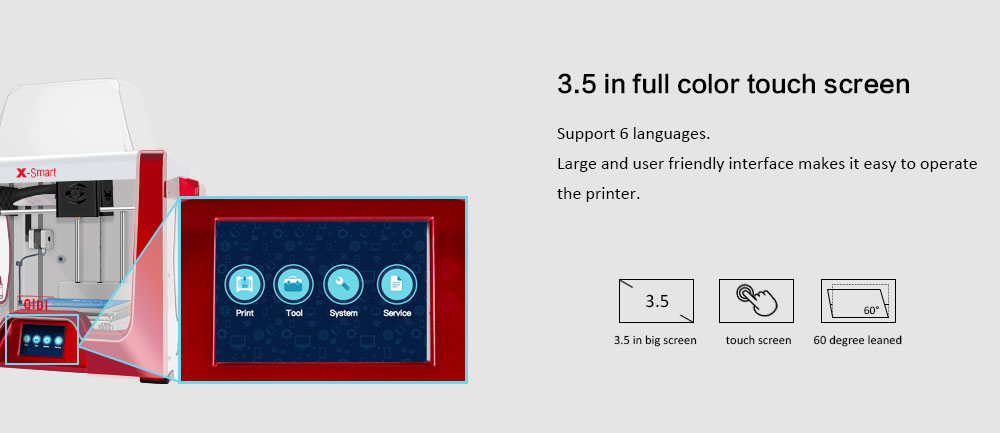

Intuitive operation with Qidi Tech’s UI (Source: Qidi Tech)

As already mentioned above, and as with its previous models, Qidi Tech seeks to provide a comprehensive 3D printing ecosystem.

The X-Smart has a 3.5-inch color-touchscreen interface that keeps you updated on your print’s progress, the print bed temperature, and other information.

The machine also is compatible with Qidi Print, a Cura mod, which is easy to use. However, if Qidi Print is not for you, the Qidi Tech X-Smart is open-source, so you can use any slicer program you like.

Fully Enclosed Chamber

As is typical for Qidi Tech 3D printers, the X-Smart is fully enclosed. Unlike with exposed, open-framed printers, an encasement serves multiple purposes. For one thing, it protects your prints from dust and curious fingers, as well as also serving as sound insulation when operating.

But, best of all, the enclosed print area keeps the temperature constant, which is essential when printing with materials such as ABS, which is prone to warping if they cool too quickly.

Turbo Cooling Fan

Qidi Tech advertises its X-Smart 3D printer to be equipped with a turbo cooling fan, blowing from four sides and therefore cooling your print evenly to prevent unwanted unilateral shrinking.

This should increase the printer’s success rate and overall print quality, depending on the materials you use. (Not all materials should be cooled during printing. ABS is generally not advised to cool down (rapidly) as it shrinks during the process.)

Removable Flexible Build Plate

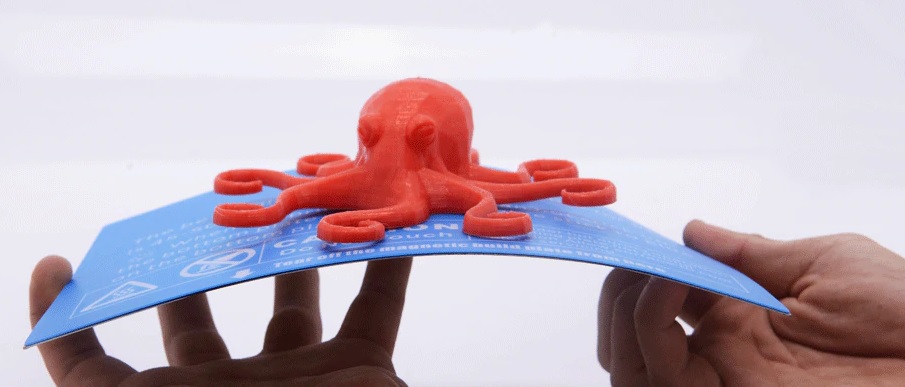

Pop it right off (Source: Qidi Tech)

The Qidi Tech X-Smart features a heated, flexible, and removable build plate. With the printer’s encasement, having a removable print bed allows for easy removal of prints once finished. No need to poke around with the spatula in the printer’s interior. Just take out the build plate, bend it, and pop the prints right off.

Further Features

Additional features of the Qidi Tech X-Smart include:

  • Resume print function: In case of a power outage, you can resume your print instead of having to start over.
  • Customer service: Qidi Tech is reputed to have great customer service.

Back to Contents

Advertisement
Advertisement
Qidi Tech X-Smart: Review the Specs

Tech Specs

Image of Qidi Tech X-Smart: Review the Specs : Tech Specs

General Specifications

3D Printer Properties

  • Build volume: 170 x 150 x 150 mm
  • Feeder system: Direct drive
  • Print head: Single nozzle
  • Nozzle size: 0.4 mm
  • Max. hot end temperature: 240 ℃
  • Max. heated bed temperature: 100 ℃
  • Print bed material: PEI
  • Frame: Aluminum
  • Bed leveling: Manual
  • Connectivity: USB, WiFi, Ethernet
  • Print recovery: Yes
  • Filament sensor: No
  • Camera: No

Materials

  • Filament diameter: 1.75 mm
  • Third-party filament: Yes
  • Filament materials: Consumer materials (PLA, ABS, PETG, flexibles)

Software

  • Recommended slicer: Qidi Print, Cura, Simplify3D
  • Operating system: Windows, Mac OSX
  • File types: STL, OBJ, AMF

Dimensions and Weight

  • Frame dimensions: 390 x 360 x 360 mm
  • Weight: 15.0 kg
