There are countless methods for acetone smoothing your 3D print, some more dangerous than others. If you’re still committed to acetone smoothing, there’s a simple way to do it with everyday household items. Besides the protective equipment mentioned before, here’s what you’ll need:

• Acetone: High-purity acetone (99-100%) is required. Acetone-based nail polish remover is diluted and doesn’t contain enough acetone to create a sufficient amount of vapor.
• Paper towels: These are soaked in acetone, which facilitates its vaporization. Any paper towels or tissues that can absorb liquids will work.
• Small magnets: These will hold the soaked paper towels against the container’s walls – one on the outside of the container and one inside. The number of magnets and the strength required will depend on the container itself (more below).
• Transparent container: This should be large enough for the 3D printed part and preferably made of glass so that it’s transparent enough to observe the smoothing process taking effect. If the container has a lid, great. Otherwise, you’ll need to use a plate that can seal it enough to trap the acetone vapor inside.
• Aluminum foil: This will isolate the ABS part and the bottom of the container, as metals are not dissolved by acetone.

If you plan on using a large container that leaves you with lots of extra free volume, you can also consider incorporating a small fan inside to promote circulation of the vapors. Otherwise, acetone vapors may sink to the bottom half of the container when left undisturbed for long periods of time.

You'll Also Need a Nicely Printed Part

Printing with ABS: 7 Tips for Perfect Prints

Before handling the acetone, let’s set up the container and base to hold the print.

The Container

1. Make sure the container can be sealed so that the acetone vapor remains inside. As the container will be placed upside-down during the process, the lid or some other surface (a plate, for example) will become the base where you’ll place the part.
2. Attach dry paper towels to the inside surface of the container with the magnets in pairs. Make sure they’re closely pressed to the container walls and that there’s minimum slack. Keep in mind that ABS can rapidly dissolve and distort if any part of the acetone-soaked paper towel even lightly touches the part. Also, try to leave a small gap between tissues so you’ll be able to peek inside the container and observe the smoothing process.

The Base

1. Consider how the part will be positioned according to the surfaces to be smoothed. The vapor will be able to reach the part’s top and lateral faces, but the bottom surface (which will be in contact with the aluminum foil) won’t receive the desired finish, so keep this in mind.

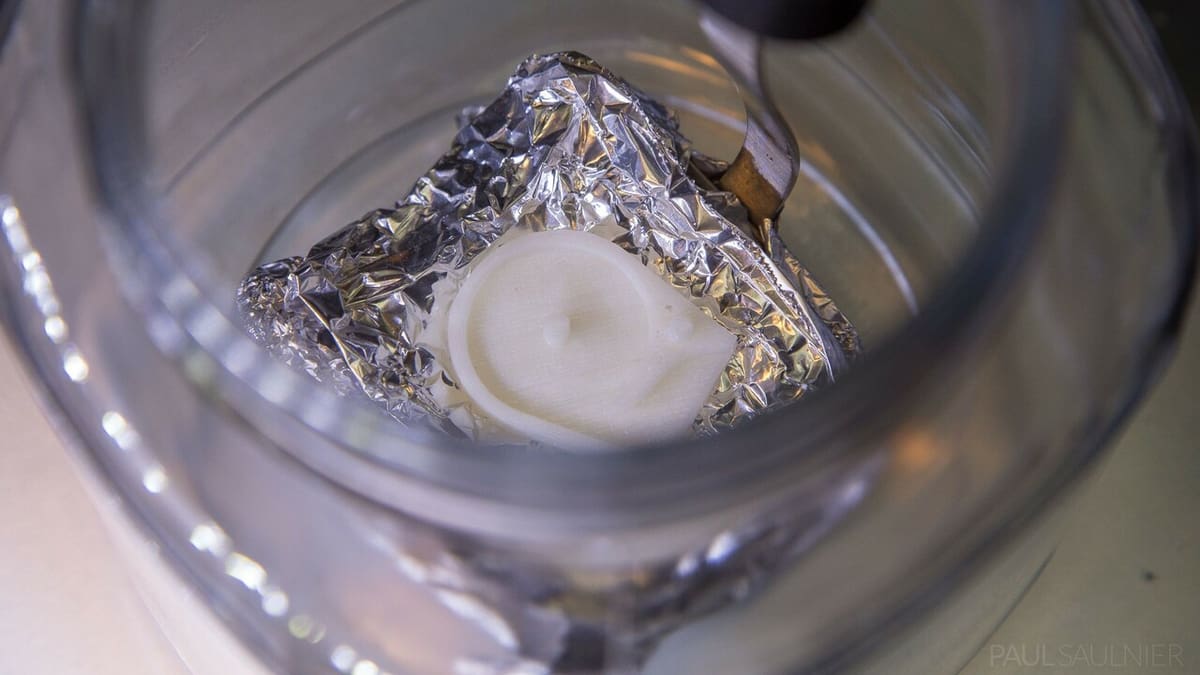

2. Take an aluminum foil sheet and fold it three to four times to make a base on which the 3D printed part will rest. You can also use anything made of glass, metal, or even failed PLA prints to raise the foil and the part, thus ensuring that there will be no contact between the part and any liquids that may collect on the bottom.

Now, we’re ready to handle the acetone and get this smoothing started.

1. Carefully soak the attached paper towels inside the container by pouring in small amounts of acetone and rolling the container until everything is covered. Ensure no excess liquid remains in the container; all should be absorbed by the paper towels.
2. Place the container upside down on the lid, or base, with the 3D printed part. Remember to avoid touching the part with the soaked paper towels, and check whether there’s a sufficent seal between the container and base.
3. Write down the time or start a timer to keep track of the duration of the process.

Now, we just have to wait until the liquid acetone vaporizes and starts dissolving the layer lines of the 3D printed part.

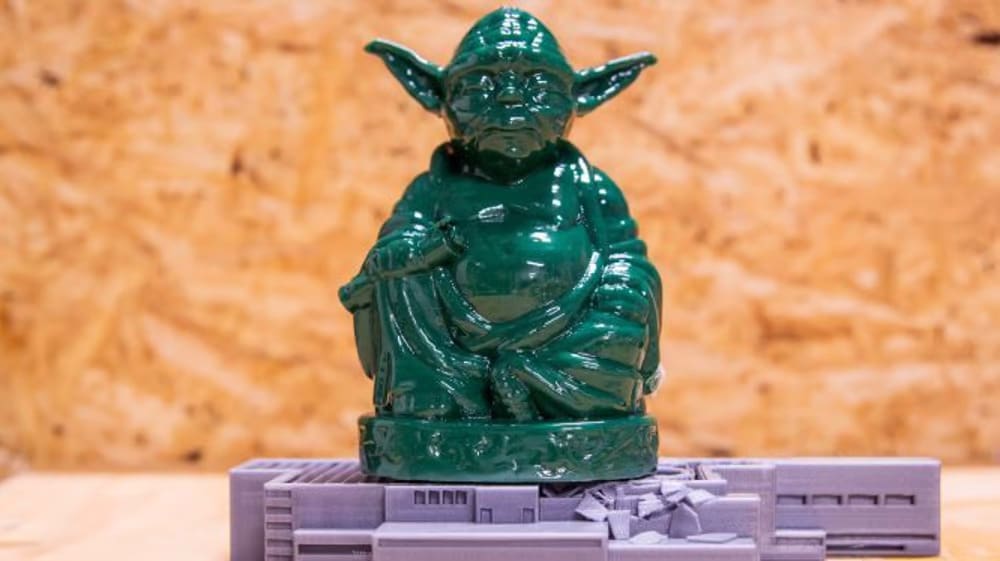

The duration of the process widely varies depending on the size of the part, the size of the container, the room temperature, and even how tightly the container is sealed. Usually, it can take anywhere from half an hour to a couple of hours. For reference, CheopisIV’s version of Budda Yoda shown above took just under two hours.

It should be much easier to follow the progress of the smoothing process with a transparent glass container. Otherwise, we would have to guess or even open the container, which would allow the vapor to escape.

There’s always a chance of over-smoothing the part, leading to the loss of all surface details or, worse, completely distorting the part. This is why a transparent container comes in handy.

It can take some practice to perfect the time required to get your desired level of surface finish, so don’t worry. After a little hands-on experience, you’ll figure out the best settings for yourself.

Once you’re satisfied with how your part looks, it’s time to stop the process and let the dissolved surface dry out to become rigid again.

1. First, make sure you’re in a well-ventilated area, then carefully remove the container, avoiding contact between the paper towels and 3D printed part.
2. Refrain from touching the part once you remove the container. After all, it’s still in a semi-liquid state. You could leave fingerprints on the part or distort it entirely.
3. Place the part in an isolated site and simply let it dry, allowing all excess acetone to vaporize into the air. It can take mere hours up to a couple of days to completely dry and become rigid again.

Be patient and enjoy. The part will start to look more shiny and polished when drying, and soon enough, you’ll be able to show off your injection-mold-looking part.

Have a go at it, and you’ll be amazed by the results you achieve once you perfect the method. Trust us! You’ll only want to try it more and more.
