What Is the DexArm?

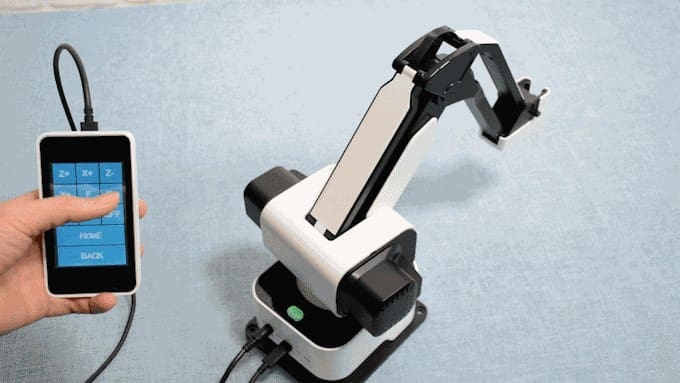

The Hexbot with the additional Touch Screen Module.
The DexArm with the additional Touch Screen Module. Source: Rotrics

Those who keep an eye on Kickstarter will know there’s always some new printer, robot, or machine waiting to be backed. While not all of these are always the best choices for investment, we’ve found one that certainly looks the part.

The Rotrics DexArm takes the popular design of the MeArm and uArm projects but adds something more. With a patented anti-backlash gearbox, this arm is claimed to have a repeatability of 0.05 mm and a precision of 0.1 mm! For comparison, the very similar uArm project had a maximum precision and repeatability of 0.2 mm.

So what does this mean? Essentially, the DexArm should be able to handle a plethora of tasks that require extreme precision, such as 3D printing and laser engraving.

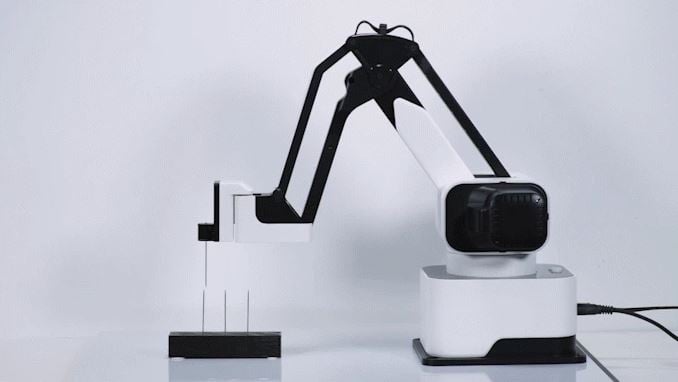

The Hexbot is said to have a repeatability of 0.05 mm.
The DexArm is said to have a repeatability of 0.05 mm. Source: Rotrics

To make such tasks even easier, DexArm has a modular end-effector design, allowing the user to easily switch between a soft gripper, a pen holder, a laser engraving module, and a 3D printing tool head. Even custom tool heads should be possible.

The modular design is fairly new to the arena and makes the DexArm much more user-friendly and versatile than its current competition.

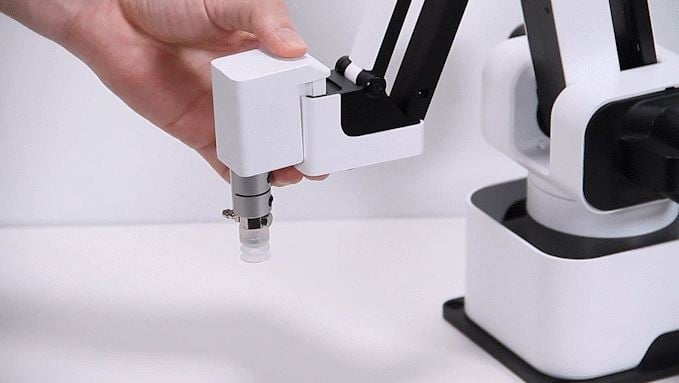

The wide variety of tool heads are easily swappable. Source: Rotrics

At this point, you may be thinking that all of this sounds expensive. And that’s exactly where the Rotrics DexArm makes its biggest mark: It’s currently being offered on Kickstarter for only $299! While there’s no specified market price after the campaign ends, we don’t expect it to go much higher.

Back to Contents

Advertisement
Advertisement

Specs & Further Details

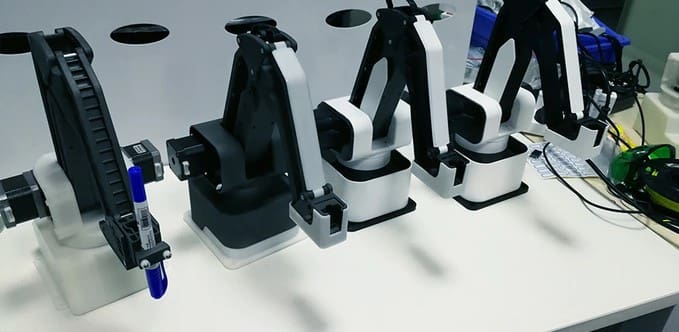

Iterations of the Hexbot design.
Iterations of the DexArm design. Source: Rotrics

The Rotrics DexArm sounds like a very capable arm, but what are the actual specifications? We’ve compiled a list of the most important ones here:

  • Precision: 0.1 mm
  • Repeatability: 0.05 mm
  • Speed: up to 500 mm/s
  • Maximum reach: 380 mm
  • Maximum payload: 500 g
  • Axes: 4
  • Modular: Yes
  • Programmable: Yes
  • Supports “Teach and Play”: Yes
  • Additional Available Modules: Touch Screen, Pneumatics Kit, Laser Engraver, 3D Printing Toolhead, Pen Holder, Sliding Rail, Conveyor Belt

The DexArm is planned to ship as of October 2019, and the campaign ended on March 9, 2019. The Rotrics DexArm is already fully funded, having allegedly reached its goal of $50,000 within 5 minutes. Since then, it’s reached over $700,000 from 1,440 backers.

In addition to the above, DexArm offers a host of other helpful features and capabilities, which you can discover on the Rotrics homepage.

Not convinced? Read about the things to watch for when backing a 3D printing Kickstarter.
