To put our selected tools through their paces, we focused on three test STL files, each with different underlying repair issues:

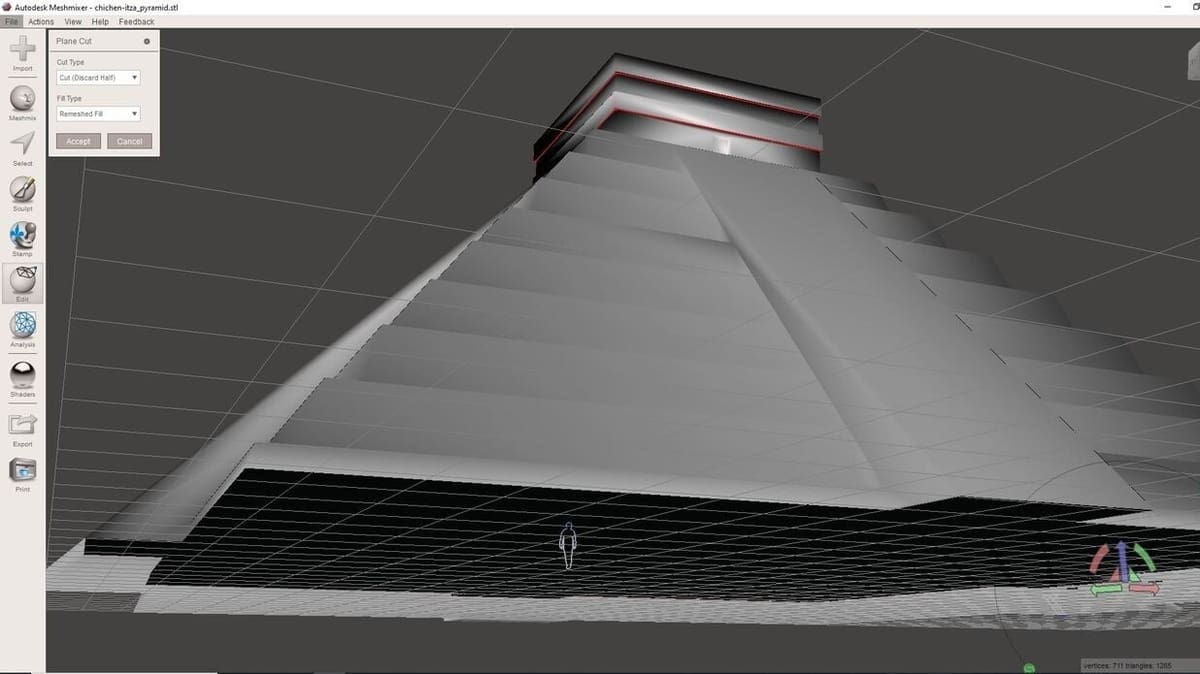

• The Temple of Kukulcán pyramid in Chichen Itza by gpvillamil. Although it looks like a single shell, it actually contains several shapes, which can confuse slicers, including a tiny human figure lost in the interior!

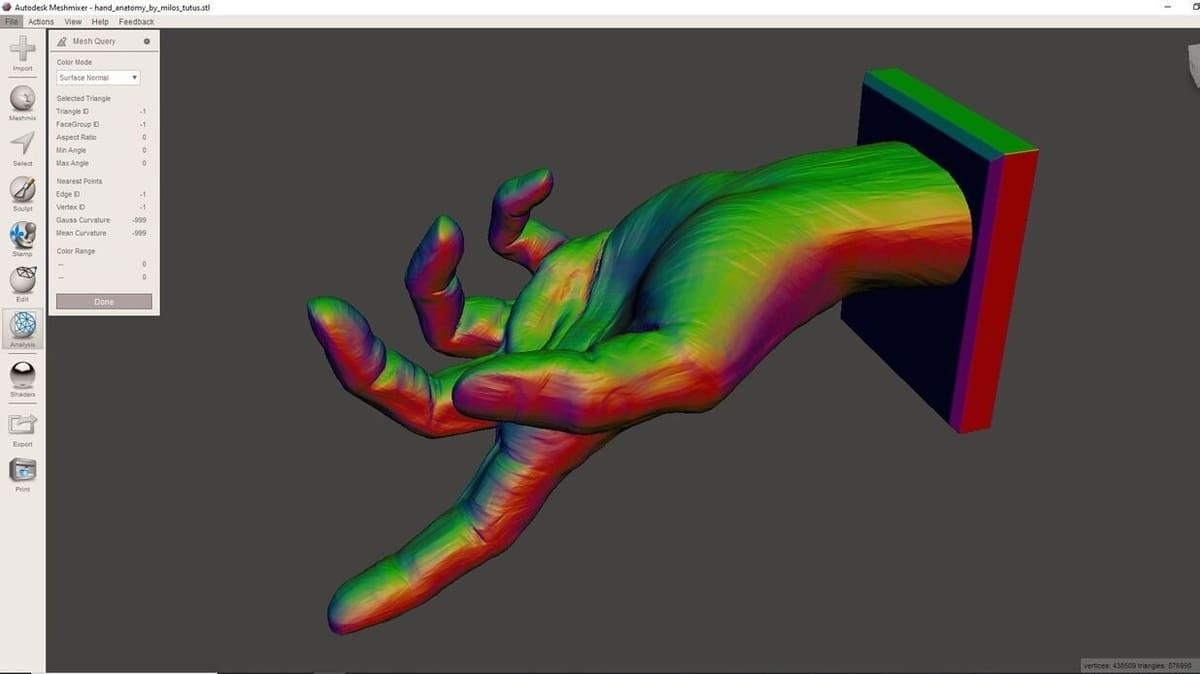

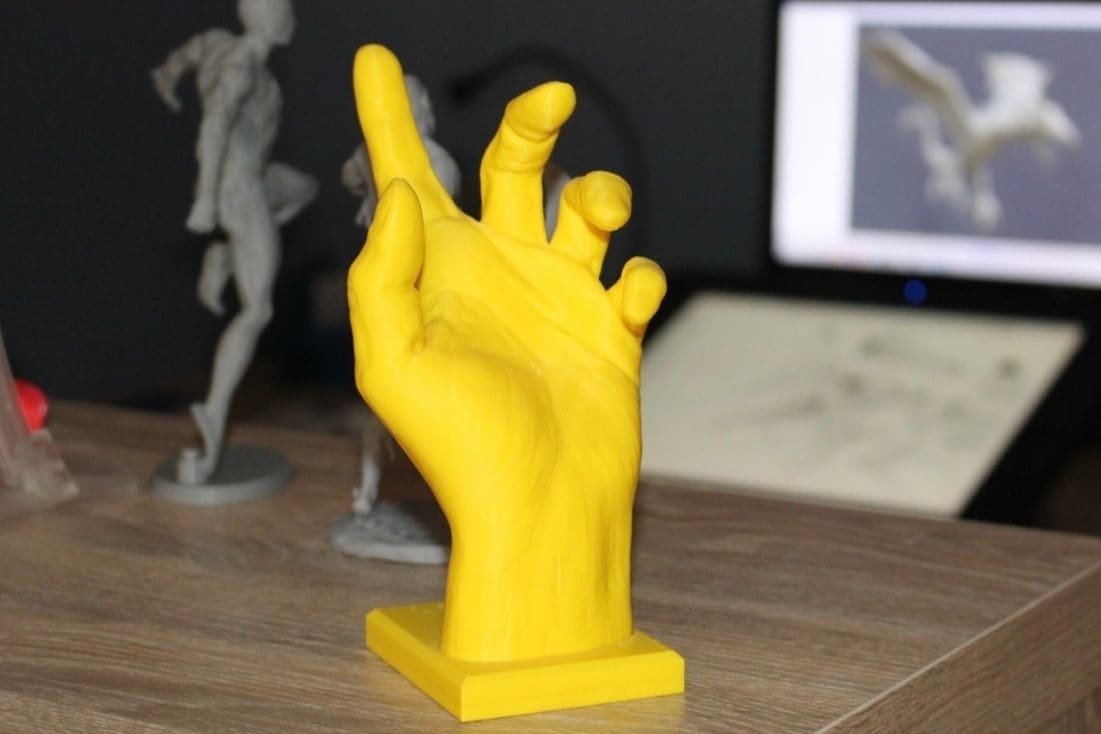

• The Hand Anatomy by tutus looks impressive when printed. It has a much higher triangle count and a couple of minor problems in the way the STL file describes the shape.
• The Tiki Man by cjohnny is a scanned model with a very large (98 MB) file size, an incomplete base, and many other issues with the underlying mesh.

We also used a few other files, with various degrees of issue, when we needed to check specific points, but the three above represented the biggest challenges.

Now that we’ve gone over our selection process for both software and test STLs, let’s look at the options.

Formware produce a commercial, full-featured slicing tool (focused primarily on resin printers) with powerful built-in STL analysis and repair functionality. A simple version of that functionality is available online for free and is exceptionally easy and engaging to use, with no need to sign in or register.

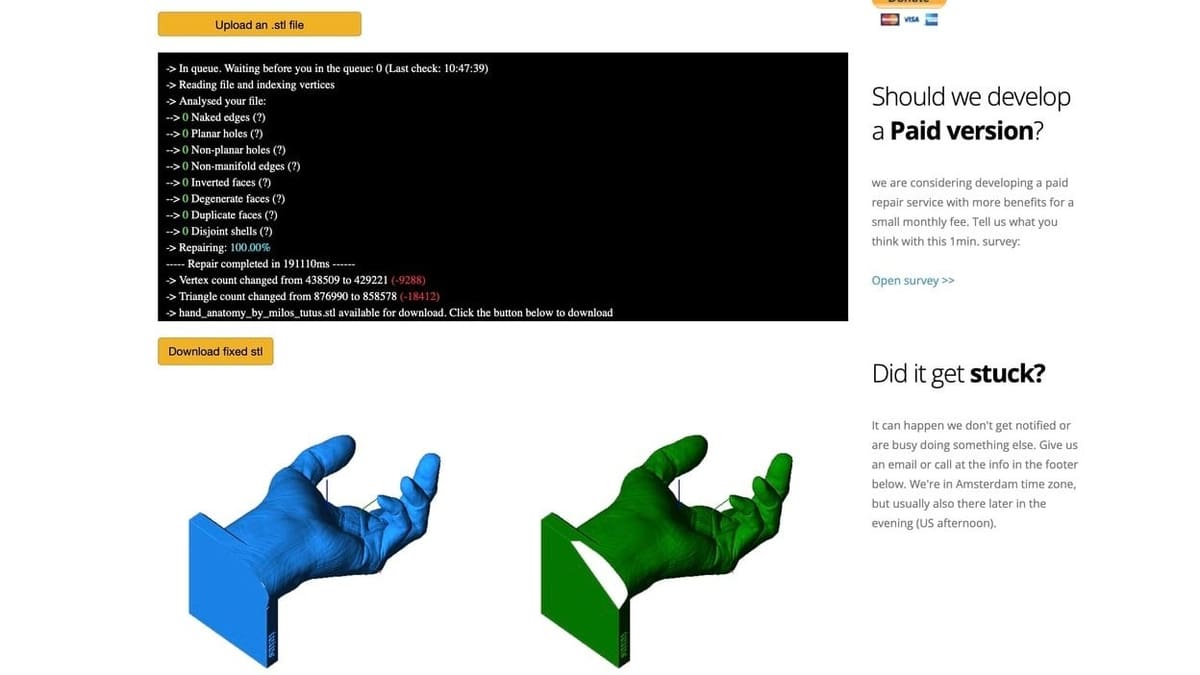

After uploaded files are analyzed, an outline of issues is displayed, repairs are made automatically, and a summary of the fixes is presented with a preview of the STL model. It could hardly be easier! We found the overview of fixes applied to be interesting and potentially useful to help track down the root cause of recurring problems.

The repair process is fast and very effective. Both the pyramid and rock sign were handled very well, although the Tiki STL exceeded the file size limit of 50 MB. There’s also a 4-minute processing time limit, although this is more than enough to fix even serious issues.

• Where to find it? Formware
• How much does it cost? Online tool is free; lifetime slicer license is ~$145 (personal use) or ~$300 (commercial)

3D Builder is bundled with most deployments of Microsoft Windows or can be downloaded separately. It was designed originally to make 3D CAD and printing easy for beginners, and has found a niche as a user-friendly way to repair or make simple changes to STL models.

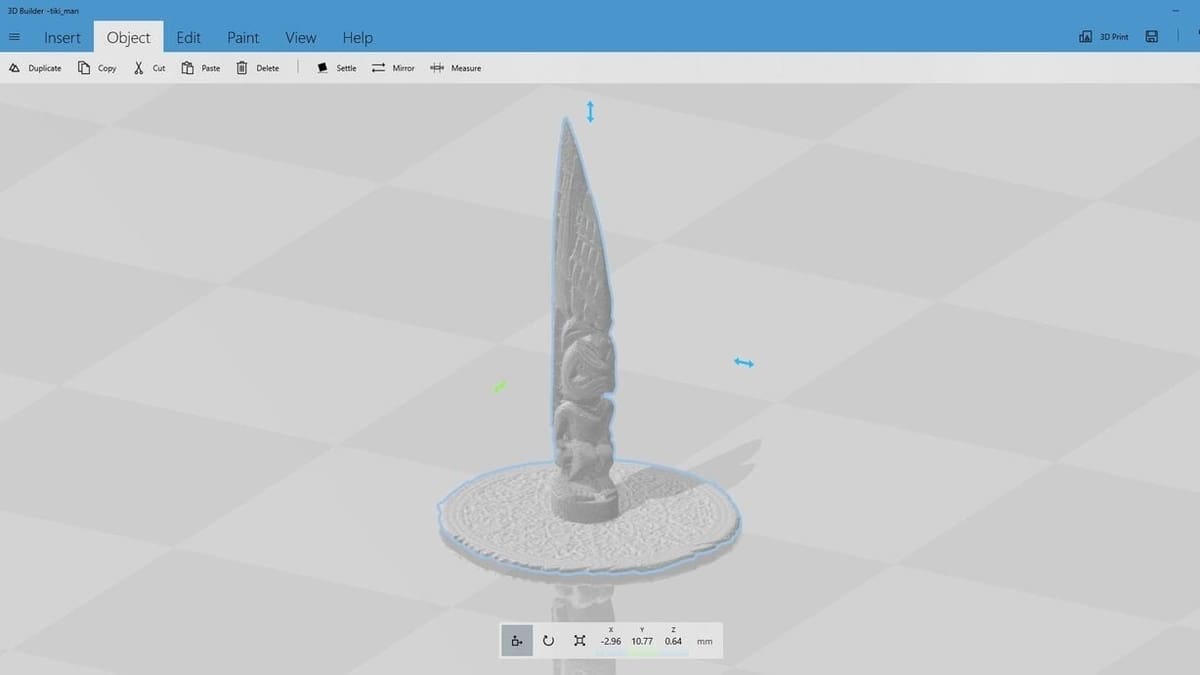

Opening an STL file shows a 3D preview of the model which can then be imported to the workspace. The model is checked for any issues and outlined in red if any are found, along with the message “One or more objects are invalidly defined. Click here to repair”. The repair process happens in the background and no additional information is presented. If the repair is successful, the image will change to be outlined in blue and the fixed file can be downloaded. The 3MF format is the default but other options can be chosen.

3D Builder repaired all three of our main test files, however on closer examination the Tiki model was still not watertight as far as most slicers were concerned and needed more work.

The user interface is clean and easy to use and features a number of other useful tools. The “Object” menu, for example, has a “Settle” feature that automatically rotates and “lays flat” STL models that aren’t upright (such as the Tiki). The “Edit” menu also has an option to “Simplify”, which lowers the number of polygons used in the STL file and reduces the file size. A slider allows the amount of simplification to be manually controlled.

By using these, and other edit options supported by 3D Builder, we removed the problematic base and were able to create a printable Tiki STL file.

• Where to find it? Microsoft
• How much does it cost? Free

FreeCAD is a standalone, freeware CAD package with a large and loyal following. Although oriented towards parametric design, it also has a good range of analysis and repair tools.

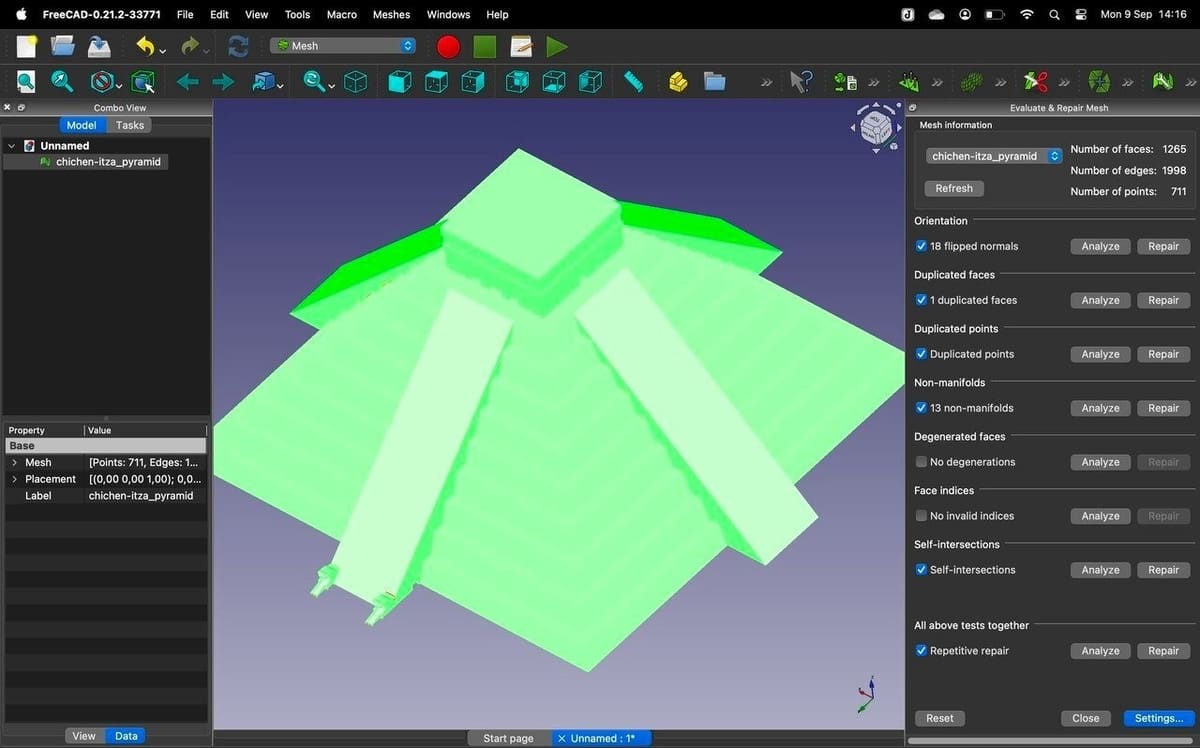

Loading an STL file in FreeCAD and entering the “Mesh Design” workspace enables the repair functionality. Select “Analyze” and then “Inspect” (you may need to check that the file you want to repair is selected in the drop-down file list that appears). The “Inspect” tool presents a comprehensive list of all the errors found and these can either be repaired individually or you can select the “Repetitive Repair” option at the bottom of the window. (Despite its name, you may have to manually repeat this process several times for badly damaged STL files.) We found that these tools worked reasonably well, and it was interesting to see how altering the order of individual, manual repairs could change the overall outcome.

However, compared with the other tools, it didn’t manage as well with our test files. Only the hand design was repaired successfully. The pyramid exposes a known issue with FreeCAD for models with intersecting geometry, and the Tiki file processed for a very long time before reporting – incorrectly – that it could find no errors!

Although repair performance was the least impressive of the tools we tested, FreeCAD contains a wide range of functions to edit the underlying design. This will save the day in many cases, although at the cost of a higher learning curve.

• Where to find it? FreeCAD
• How much does it cost? Free

Meshmixer is the self-proclaimed “Swiss Army Knife for 3D Meshes” and with good reason. This standalone tool from Autodesk is beloved by many notable 3D printing commentators and YouTubers. It’s reasonably easy to learn the basic functions (see our Meshmixer tutorial), and has enormous depths of additional capability, albeit with a steep learning curve. While Meshmixer is no longer in development, it hasn’t been retired, so this is still a valid inclusion on our list.

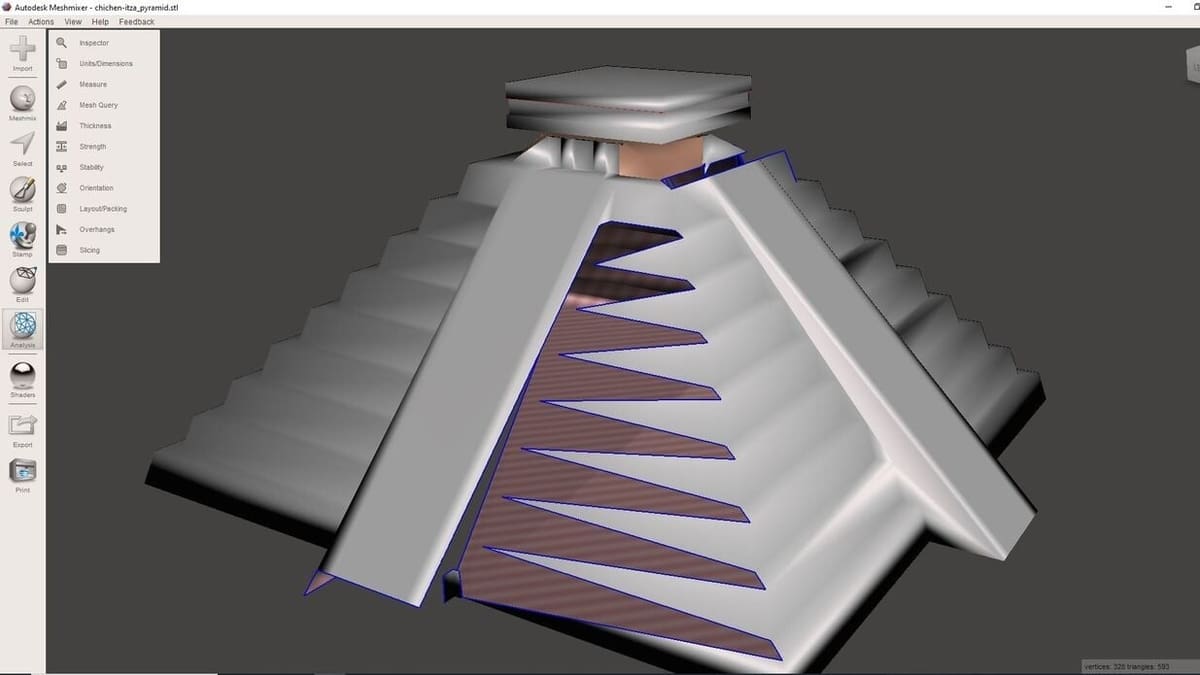

After importing a defective STL file, Meshmixer will automatically highlight any superficial issues in red, but its power lies within the “Analysis” menu and the “Inspector” function. On selecting this option, Meshmixer does an outstanding job of visually highlighting every error detected using a color-coded “ball and stick” representation. Minor holes and defects are highlighted in blue, red is applied for more serious issues, and magenta flags spurious small details that may need to be removed (the level of detail at which this is applied can be changed by sliding the “threshold” control).

Individual errors can be repaired selectively by clicking on the appropriate “ball”, and there’s also an “Auto Repair All” feature. There are also many options to set exactly how repairs are conducted, such as a variety of methods to fill detected holes.

An important point to appreciate is that Meshmixer’s repair tools are focused on fixing scanned images. As a result, it was the only tool to make a printable version of the Tiki Man without further design changes and also made short work of the hand model. However, like FreeCAD, it entirely failed to repair the pyramid.

Even on very poor scanned STLs, we found that the repair function did a reasonable job of fixing obvious issues, and after this, Meshmixer’s excellent editing and sculpting tools could patch up the remainder.

One feature worth noting is an STL-repair secret weapon called “Make Solid“, found on the Edit menu. This converts overlapping shapes and shells to a single, watertight object suitable for printing. It’s an impressive feature, even if it’s more suited to sculpted or scanned shapes that those produced by CAD tools. After much trial and error, we even managed to fix the pyramid using this tool, although the resulting STL file was enormous!

• Where to find it? Meshmixer
• How much does it cost? Free

Although Meshmixer is indeed good software worth using in many different scenarios, because it’s no longer being developed, we thought it was worth mentioning Fusion. This 3D CAD software is also from Autodesk.

Many of the mesh tools available in Meshmixer, such as “Repair”, “Plane Cut”, “Shell”, and “Reduce”, are now integrated into Fusion – including in the free version of the software.

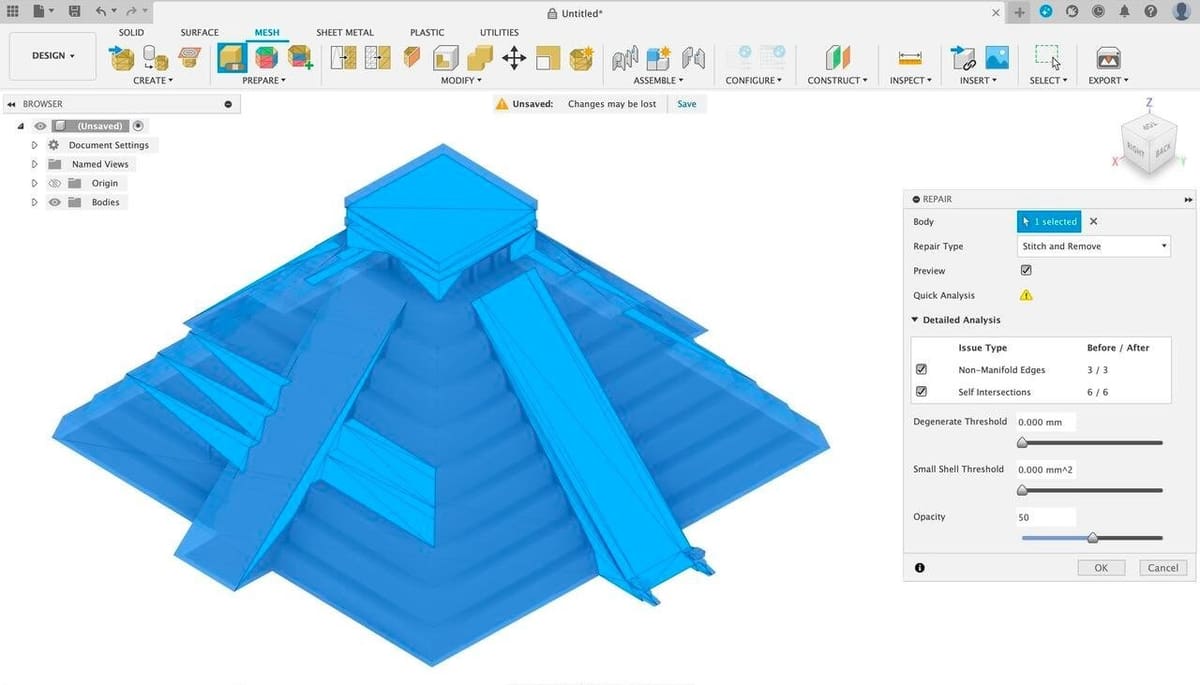

To perform mesh repair, select the “Mesh” tab on the ribbon and click on “Insert Mesh”. Choose the appropriate unit type, position your mesh on the workspace, and then click ok. The “Repair” tool enables four operations: Close Hole, Stitch and Remove, Wrap, and Rebuilt. Selecting the “Preview” box will allow you to verify how each of these operations works, and the “Detailed Analysis” will provide more information regarding “Non-manifold Edges” and “Self Intersections”, also highlighting the issues on the model. After that, right-click the modified mesh and choose “Save As Mesh” to download the repaired file for 3D printing.

Fusion was able to repair all three models with the slicer not alerting about any issues, including making a watertight version of the Tiki Man in a similar way as Meshmixer. However, further editing, such as using the “Plane Cut” tool, can improve the model by creating a perfectly flat base.

• Where to find it? Autodesk
• How much does it cost? Free for personal use, full version costs ~$680 per year

None of the tools handled every test perfectly. As a result, there’s no clear best performer – each tool has its own particular strengths and could be the right choice depending on a number of factors.

For quick and simple repairs, Formware did surprisingly well, handling a range of issues without difficulty. While it struggled with larger file sizes, it’s a first port of call for most issues.

Windows users will find that 3D Builder provides more control over repairs and optimization. The ability to handle larger STL files and a few useful features might make the difference between success and failure.

Although FreeCAD emerged at the foot of our league table for automatic repairs, it’s easy to use. For CAD models that need minor changes to print effectively, it’s a better option than 3D Builder and has a lower learning curve than many other CAD tools.

Scanned STL files are becoming more common as low-cost phone-based solutions emerge, but they bring their own distinct repair issues. For these, Meshmixer is definitely the best option of those reviewed, although it’s no “click and go” option. Fusion comes as a possible alternative to it if in the future it becomes unavailable or outdated.
