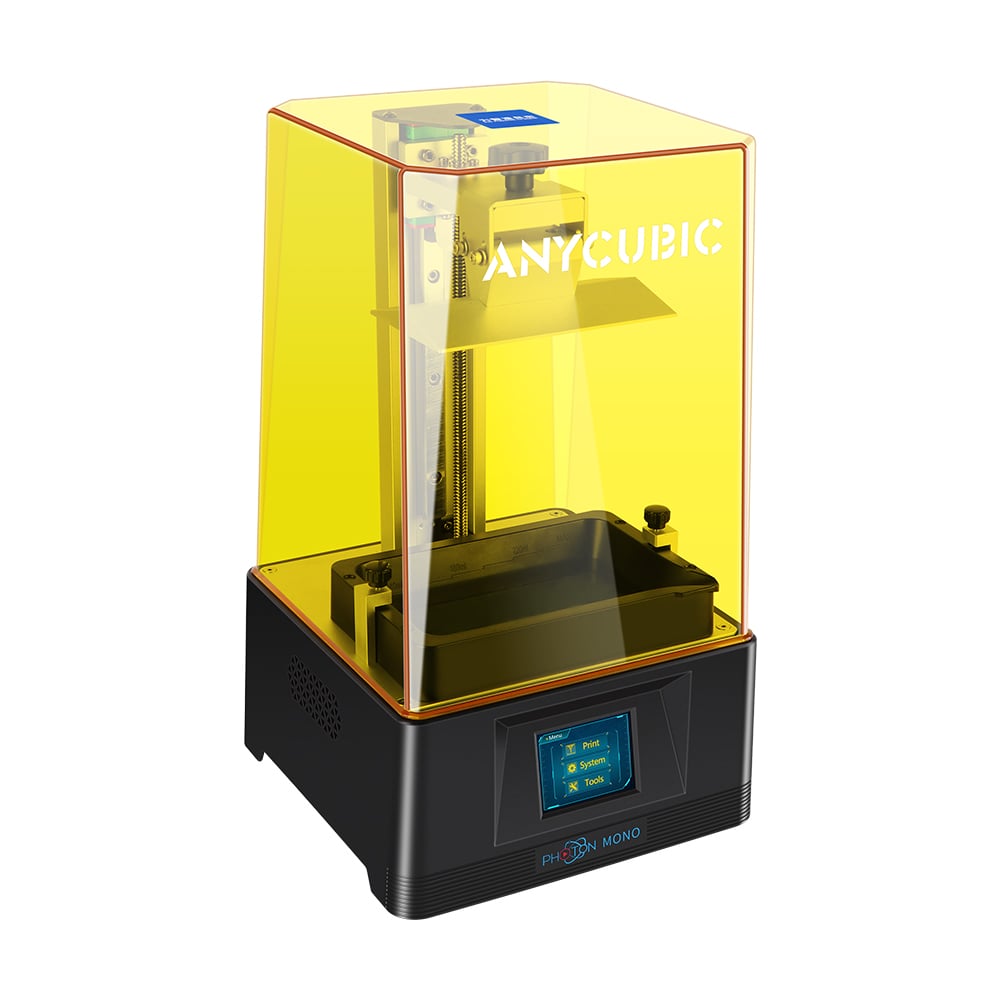

Amid a slew of exciting new machines comes the Photon Mono, a budget-friendly 3D printer with a new-generation mono screen and upgraded features.

At a pre-order price of $209, the Photon Mono is a competitive printer ideal for enthusiastic hobbyists and small and medium-sized enterprises looking for affordable rapid prototyping.

Monochrome Screen

Monochrome LCDs ensuring a greater intensity of light to pass through, effectively reduce the amount of exposure time needed to cure the resin.

The Photon Mono features a very short curing time and claims to be able to print a maximum of 50 mm every hour. The panel also has a higher-rated lifetime than color LCDs, life expectancy lasting over 2,000 hours in normal usage.

Highly-Detailed Prints

The Photon Mono features a matrix parallel light source and a high-quality Z-axis rail structure. This ensures your parts will be produced with high levels of precision and dimensional accuracy.

Compared with the fan-shaped single light, the Photon Mono’s array of parallel lights use direct current and have a narrower emission angle, which can greatly improve the printing quality.

Because of less light scattering, it provides sharper contrast at the edges and reduces diffuse reflection, resulting in a delicate and smooth surface. The array ensures that the light source is evenly distributed across the printable area.

Anycubic Slicer Software

The Photon Mono uses Anycubic’s slicer software, Workshop, to make the workflow easier. It also supports up to eight times anti-aliasing.

Additional Features Include:

• High-quality power supply with UL certification, CE marking, and ETL certification
• Cooling device for stable printing performance and longer service life
• The top cover can block 99.95% of the UV light

Photon Mono Specifications

• System: Anycubic Photon Mono
• Operation: 2.8-inch touchscreen
• Software: Anycubic Photon Workshop
• Connectivity : USB
• Technology: LCD-based SLA
• Light-source: high-quality filament (wavelength 405 nm)
• XY Res.: 0.051 mm 2560*1620 (2K)
• Z-Axis Res.: 0.01 mm
• Layer Res.: 0.01 ~ 0.15 mm
• Printing Speed: Max. 50 mm/h
• Rated Power: 45 W
• Printer Size: 227 mm (L) * 222 mm (W) * 383 mm (H)
• Build Volume: 130 mm (L) * 82 mm (W) *165 mm (H)
• Material: 405 nm UV resin

You can buy your own Photon Mono from Anycubic’s official website.

—
