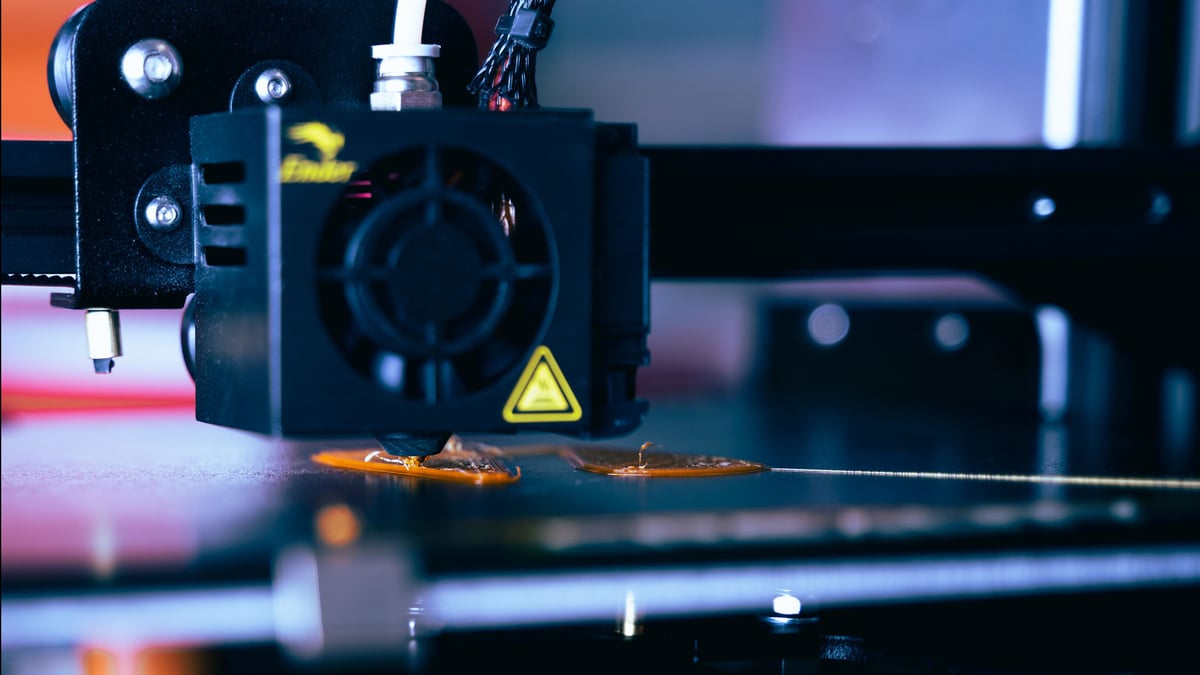

Marlin firmware has become a crucial building block for many consumer-level 3D printers. Most Creality machines shipping out of Shenzhen run some variant of Marlin. Even higher-end Ultimaker machines run firmware derived from Marlin.

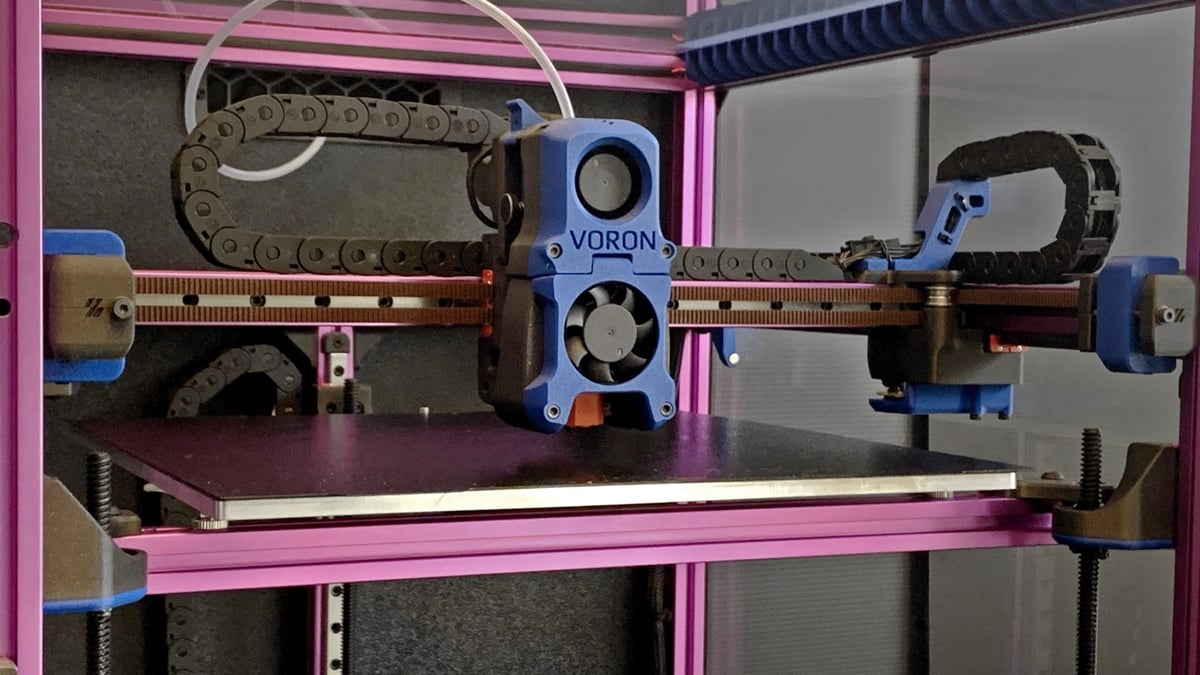

Let it be said: Marlin is a capable firmware. However, it was originally developed for 8-bit microcontrollers. Since we are now in an age of 32-bit microcontrollers, its limitations have become more apparent. While Marlin 2.0 mostly overcomes this, some users in the community feel unsatisfied with its performance, and Klipper seems to be the answer. In the world of desktop 3D printing, where the open source community leads, commercial interests tend to follow, and we’re now seeing 3D printer manufacturers adopting Klipper as stock firmware.

What Are the Advantages of Running Klipper Firmware?

Much like Marlin, Klipper is open source 3D printer firmware, but it operates a little differently.

Notable differences include:

Accelerated Processing

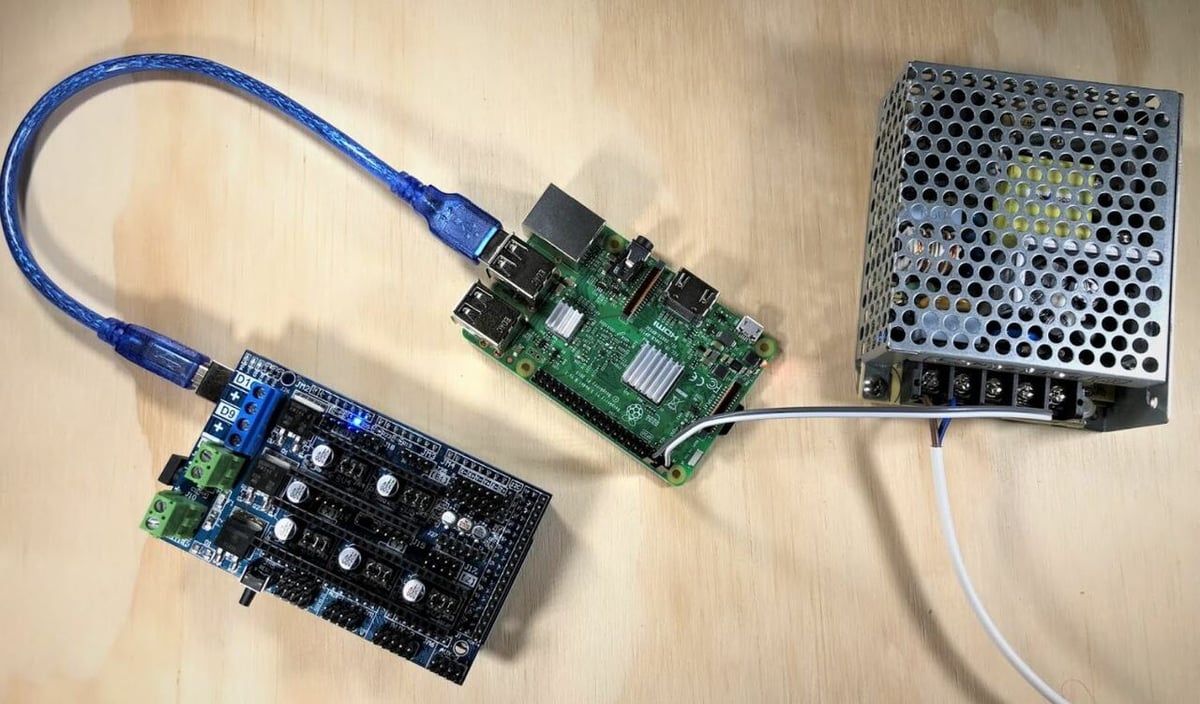

Marlin is designed to run on microcontroller architecture. Klipper works differently: all the computation is delegated to a more powerful CPU that works in tandem with a microcontroller. The CPU does all the processing in advance and hands this information to the microcontroller via USB. The microcontroller then forwards this information to the motors. This is the majority of work the microcontroller does in Klipper – it does not do any motion system processing like it would with Marlin.

Outsourcing motion system calculations to a more powerful processor means your machine can carry out more actions in a given period. Klipper can achieve 175,000 steps per second on 8-bit mainboards and as high as 500,000 steps per second on newer, 32-bit options. These speeds significantly outstrip those that are possible with Marlin.

It Works With a Wide Range of Hardware

It’s pretty common to have a box of spare 3D printer parts lying around, and Klipper can integrate any old 8-bit or 32-bit boards you have on hand. All you need to do is plug in the spare controller to the Klipper host’s USB port and configure the system. You then have access to your spare board’s motor channels plus any the channels you already have. As a bonus, Klipper can make older controller hardware run much faster than Marlin can. For modern 32-bit boards such as SKRs, you can get around 600,000 steps per second.

Pressure Advance

Pushing material through a Bowden extrusion system can leave visible print artifacts, especially when using a long Bowden tube. This is because the material can compress,  building up excess pressure in the system. Klipper’s Pressure Advance feature adjusts material flow based on the material’s elasticity resulting in less oozing and blobbing from the nozzle, and defined print features such as sharper corners.

A similar feature (Linear Advance) exists in Marlin, but this doesn’t introduce smooth velocity changes. Pressure Advance in Klipper does – giving it the advantage.

Input Shaping

Printing at higher speeds can leave visible artifacts in your print, caused by inertia and harmonics from the print head vibrating. These artifacts go by several names, but most commonly, they’re referred to as ‘ringing’ because they leave visible rings in the contours of your printed object. Input shaping works by compensating print head vibrations so you can take advantage of faster mechanics and cancel out these artifacts.

This feature can be configured in Klipper firmware manually by doing test prints and inputting data, or, more conveniently, by fitting an accelerometer into the print head so it can measure and compensate in real time. At the time of writing, input shaping isn’t supported by Marlin – giving Klipper a significant advantage.

WebUI Control

WebUI control isn’t a native feature of Marlin, but can be achieved as an optional upgrade by setting up an OctoPrint server on a Raspberry Pi or similar device.

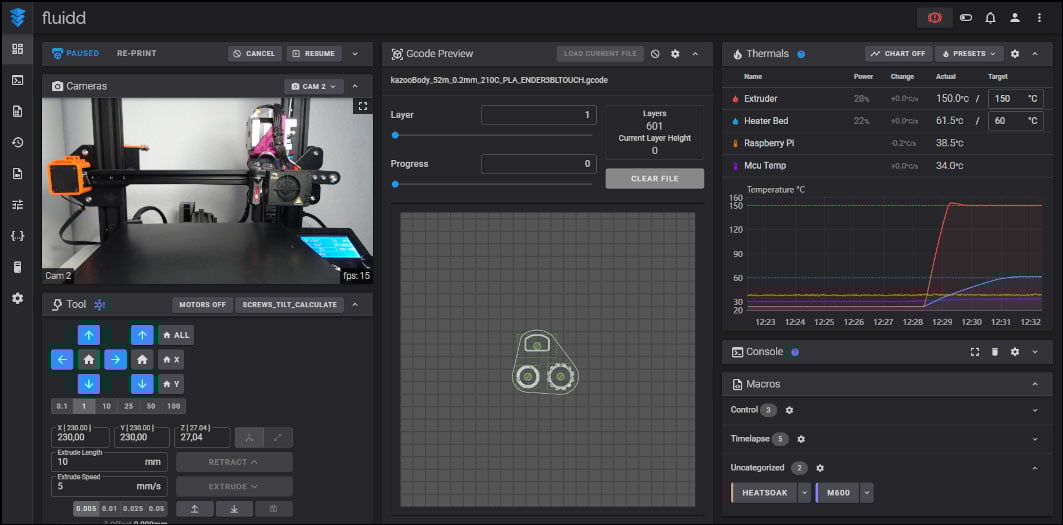

Klipper includes a native WebUI. You also have a choice of which interface you use – Mainsail, Fluidd, or OctoPrint (the difference is mainly visual – the underlying features remain the same). Using Klipper’s WebUI, you can control your machine remotely through a web browser, conveniently edit configuration settings at the firmware level, monitor progress, view camera feeds, and so on.

• Thermal runaway protection algorithms
• Supports TMC silent stepper drivers
• Supports common bed probes, such as BLTouch and inductive probes
• Supports multiple tool heads, such as IDEX or tool changers
• Supports a wide range of G-code dialects
• Supports different styles of bed leveling
• Runs on Python – a widely-used and relatively accessible programming language
• Open source, with lots of community features
• Constantly evolving, lots of features are being developed to enhance it
• Plugin architecture in development
• New standalone interfaces in development
